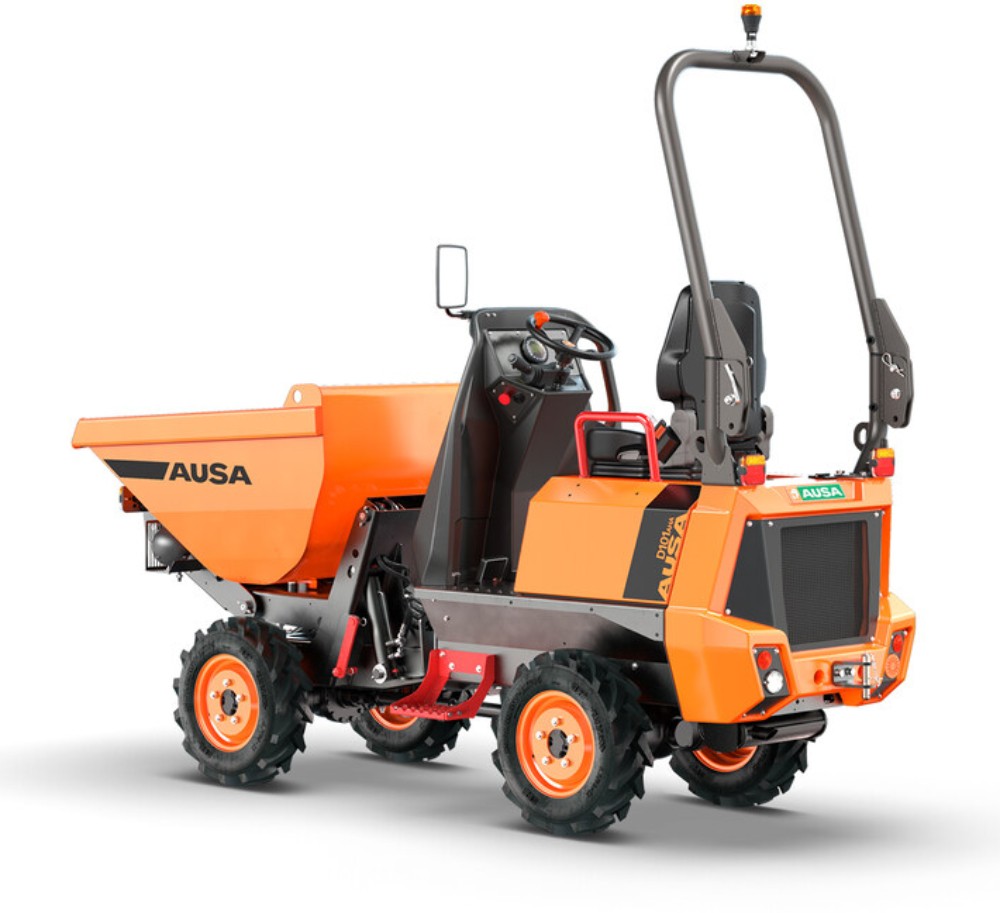

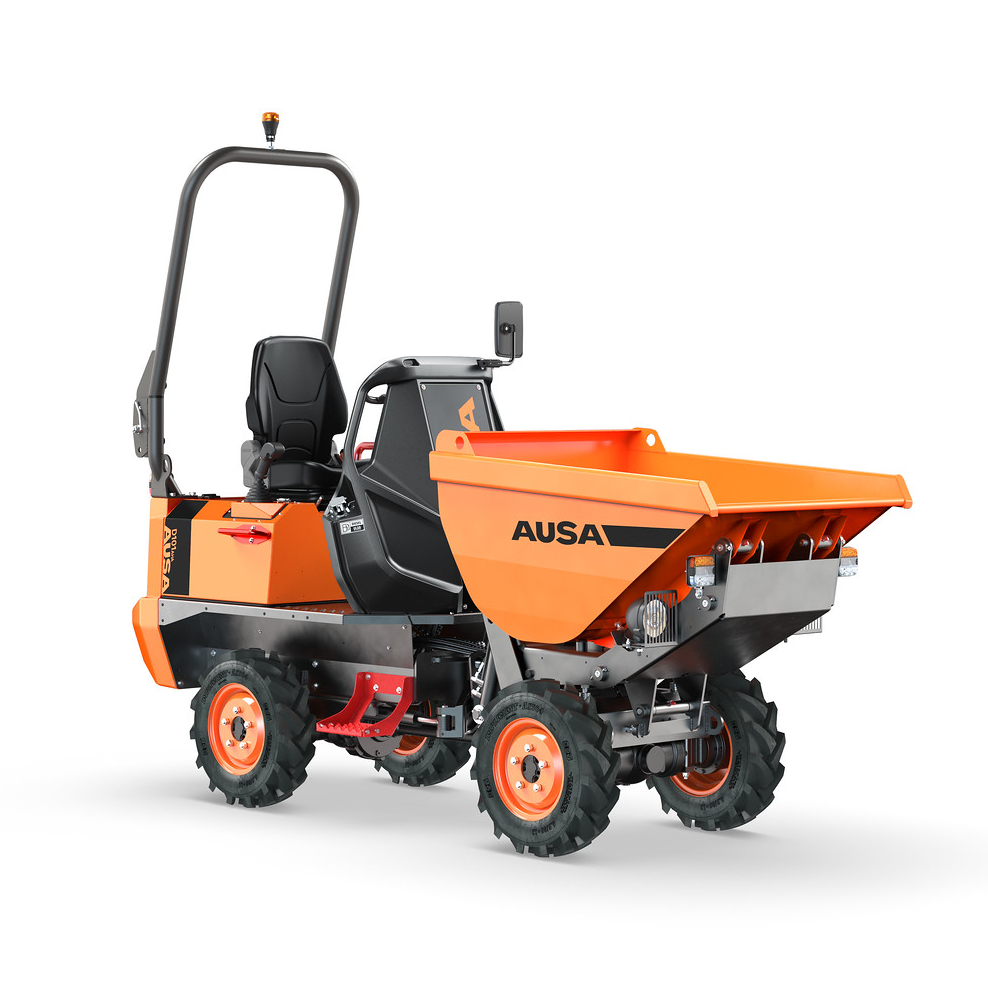

New AUSA D101AHA Compact Articulated Dumper
(1.0T)
Ultra-Compact 1-Tonne Capacity, Elevated High-Tip System, Agile
Articulated Drive. The AUSA D101AHA is the ultimate compact dumper for
extremely tight sites, urban construction, and delicate landscaping projects.
Weighing in with a 1,000 kg payload capacity, its standout feature is a
high-tipping scissor skip that elevates material to tip directly into skips,
trucks, or high-sided containers. With a narrow track width of just 1.0 metre,
the D101AHA easily navigates standard garden gates, pedestrian pathways, and
interior doorways while providing stable, reliable 4WD hydrostatic
performance.

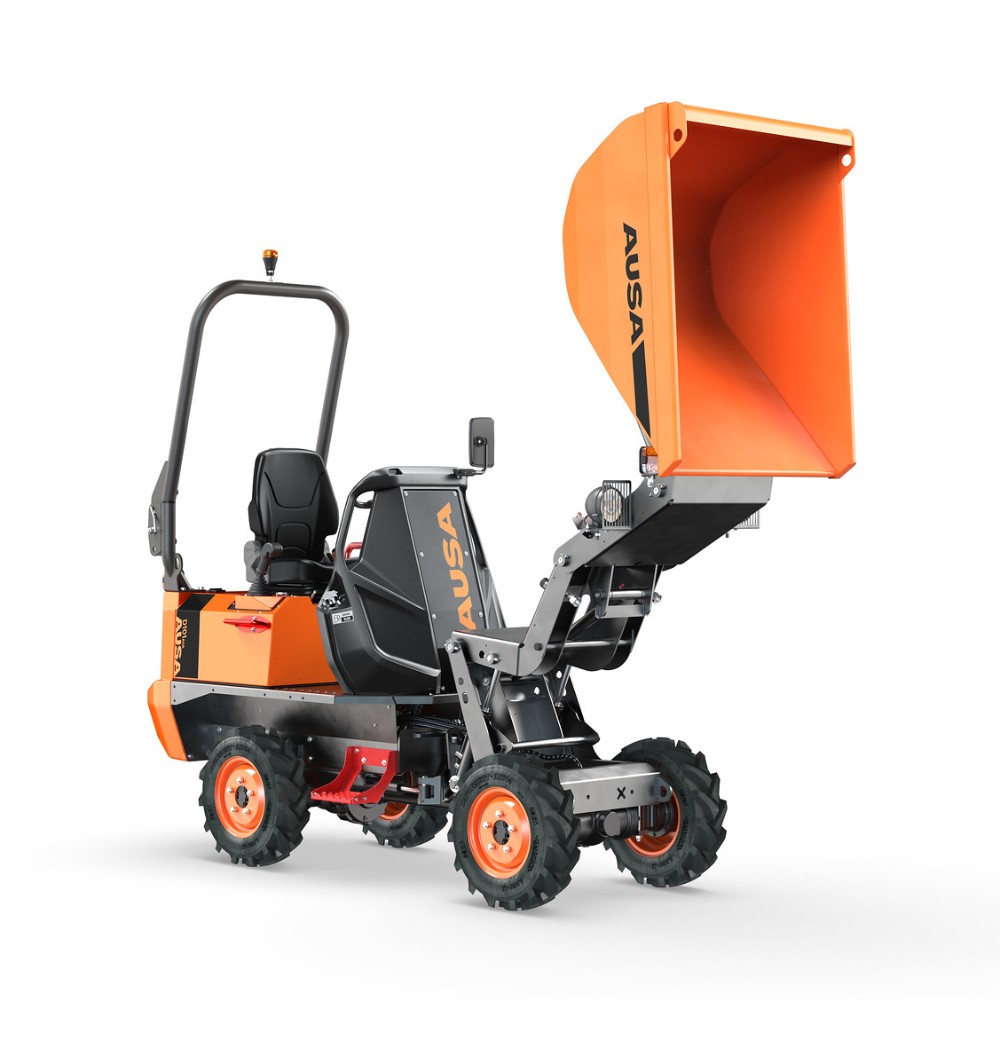

Elevated High-Tip System
- Scissor-Action Lift: Hydraulically elevates skip to
discharge material up to 1.70 m directly into waste containers and
vehicles.
- 1,000 kg Payload: Compact 1-tonne carrying capacity
engineered for high efficiency on restricted jobsites.
- Single-Joystick Control: Intuitive single joystick
handles travel direction, skip lift, and tipping controls.
Request a Quote
Ultra-Narrow 1.0m Width
- 1000mm Transport Width: Exceptionally narrow footprint
allows access through standard doorways and tight garden gates.
- Articulated Steering: Tight turning circle provides
outstanding maneuvering agility around obstacles and in tight spaces.
- Low Turf Impact: Light operating weight minimizes ground
damage on lawns and paved surfaces.
Kubota Stage V Power
- Kubota Engine: Efficient Stage V compliant Kubota diesel
engine designed for high reliability and low operating costs.
- Hydrostatic 4WD: Continuous 4-wheel drive system delivers
solid traction on soft ground and gradients.
- Automatic Hill Brake: Negative safety brake engages
automatically to hold the machine firmly on slopes.
Operator Safety & Design
- Folding ROPS Arch: Foldable ROPS protection arch reduces
overall height for transport and low clearance access.
- Operator Seat Sensor: Safety interlock system prevents
unwanted movement without seatbelt engagement.
- Road Lighting Kit: Front and rear road lights with
rotating beacon included for safe on-site transport.
Model Variations & Configurations
| MODEL |
DESCRIPTION & SPECIFICATIONS |
PRODUCT CODE |
| AUSA D101AHA |
1.0-Tonne High-Tip Skip, Hydrostatic 4WD, Folding ROPS, Road Light
Kit |
W20AU0101A |
| AUSA D100AHA |
1.0-Tonne High-Tip Skip (Narrow Chassis), Hydrostatic 4WD, Folding
ROPS |
W20AU0100A |
Technical Specifications - AUSA D101AHA
| SPECIFICATION |
DETAILS |
| Payload Capacity |
1,000 kg |
| Unloading Mechanism |
Hydraulic High-Tip (Elevating Scissor Action) |
| Max. Tipping Height |
1,700 mm |
| Engine Model |
Kubota D902 Stage V |
| Engine Output |
16.1 HP / 12 kW @ 2,800 rpm |
| Transmission Type |
Hydrostatic Permanent 4WD |
| Max. Travel Speed |
14 km/h |
| Heaped Skip Capacity |
Approx. 565 Litres |
| Overall Transport Width |
1,000 mm |
| Overall Transport Length |
3,140 mm |
| Unladen Machine Weight |
1,300 kg |
