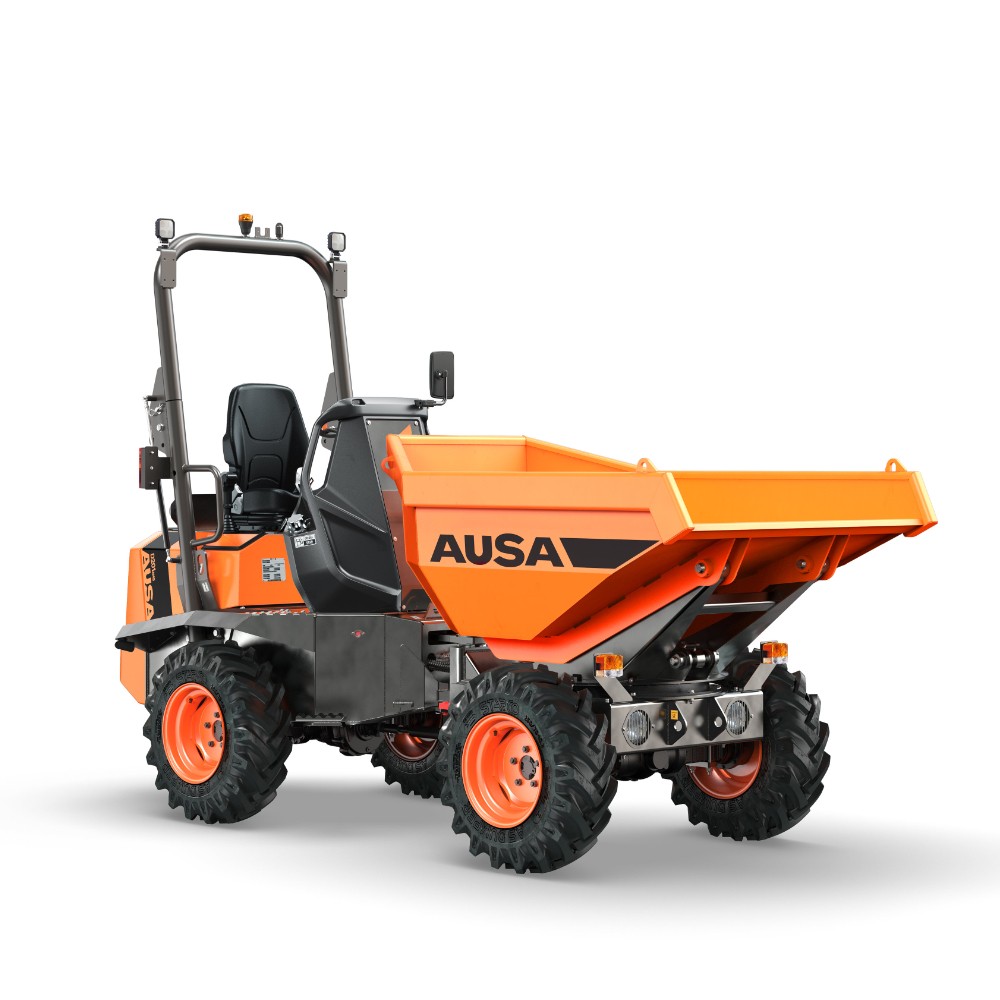

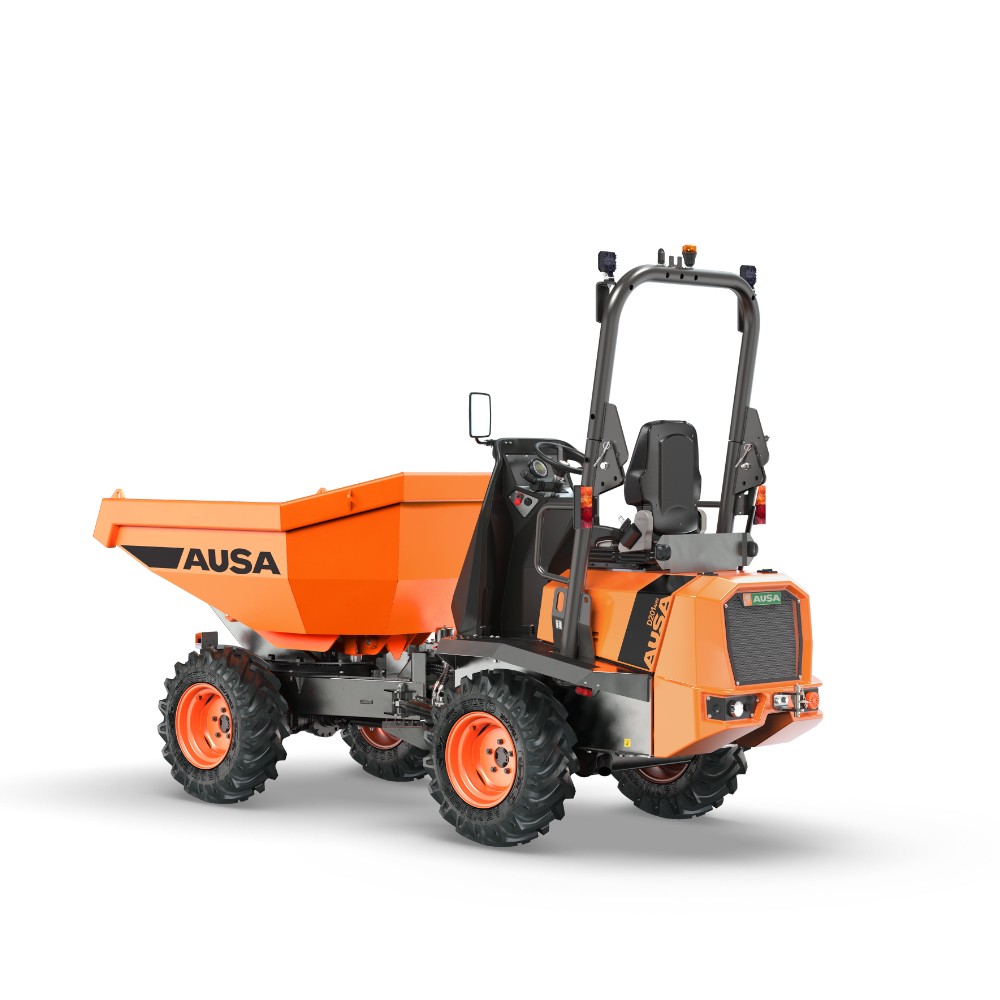

New AUSA D201AHG Articulated Swivel Skip
Dumper (2.0T)
2.0-Tonne Payload, 180° Rotating Swivel Skip, Permanent Hydrostatic
4WD. The AUSA D201AHG is an extremely robust, versatile, and efficient
site dumper designed to bridges the gap between compact 1.5-tonne models and
larger site machinery. Capable of carrying up to 2,000 kg, its standout feature
is a hydraulic 180° swivel skip that enables operators to unload gravel, soil,
rubble, and concrete with exceptional accuracy along side trenches and in
confined construction lanes. Powered by a high-torque Stage V Kubota diesel
engine and permanent 4WD hydrostatic transmission, the D201AHG delivers
outstanding off-road performance and stability.

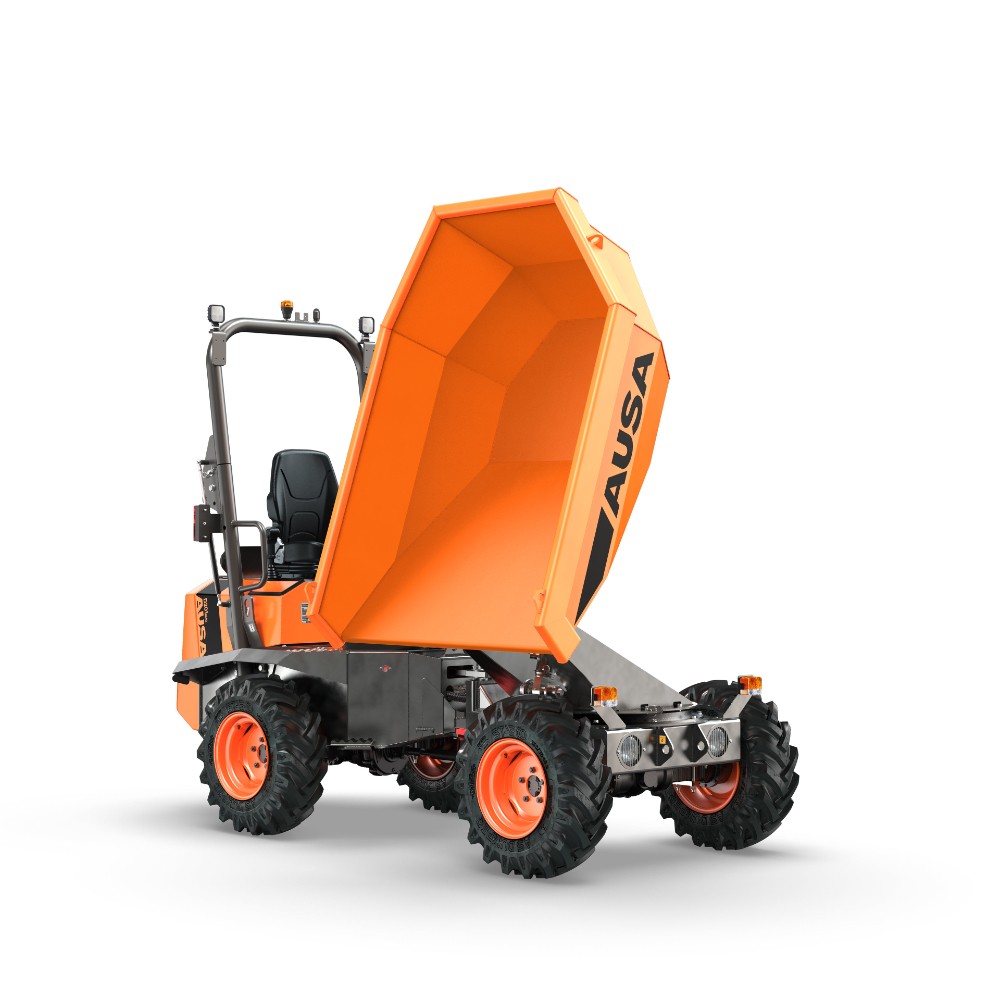

180° Rotating Swivel Skip
- Side-Dumping Efficiency: Hydraulically rotates 180
degrees to discharge materials laterally without turning the chassis.
- 2.0-Tonne Payload: High load capacity carrying up to
2,000 kg for rapid earthmoving on civil and municipal sites.
- Multi-Function Control: Single proportional joystick
offers smooth, responsive control over travel direction and skip
tipping.
Request a
Quote
Agile Articulated Chassis
- Articulated Steering: Delivers a tight turning radius for
smooth maneuvering in confined work areas.
- Compact Transport Width: Under 1.6 metres wide for easier
transit through restricted site access gates.
- Optimal Weight Distribution: Low centre of gravity
ensures superior stability when transporting heavy loads across uneven
terrain.
Kubota Stage V Power
- Stage V Engine: Reliable, fuel-efficient Kubota
3-cylinder diesel engine delivering clean emissions and lower running
costs.
- Hydrostatic 4WD: Continuous 4-wheel drive system delivers
max traction on soft soil, mud, and steep slopes.
- Automatic Retention Brake: Negative braking system
automatically secures the machine on inclines when stationary.
Operator Safety & Access
- Folding ROPS Protection: Folding ROPS safety arch allows
quick adjustment for low-overhead clearance and easy transport.
- Presence Safety Sensors: Seat sensors and seatbelt
interlocks prevent accidental operation when operator is unseated.
- Road Lighting Package: Standard equipped with full
front/rear road lights, beacon, and acoustic reverse alarm.
Machine Overview Video
Model Variations & Configurations
| MODEL |
DESCRIPTION & SPECIFICATIONS |
PRODUCT CODE |
| AUSA D201AHG |
2.0-Tonne Swivel Skip, Hydrostatic 4WD, ROPS Arch, Road Light Kit |
W20AU0201G |
| AUSA D151AHG |
1.5-Tonne Swivel Skip, Hydrostatic 4WD, ROPS Arch, Road Light Kit |
W20AU0151G |
Technical Specifications - AUSA D201AHG
| SPECIFICATION |
DETAILS |
| Payload Capacity |
2,000 kg |
| Unloading Mechanism |
Hydraulic 180° Swivel Skip |
| Engine Model |
Kubota Stage V Diesel |
| Engine Power Output |
Approx. 18.5 kW / 25 HP @ 2,400 rpm |
| Transmission Type |
Hydrostatic Permanent 4WD |
| Max. Travel Speed |
Approx. 14–20 km/h |
| Heaped Skip Capacity |
Approx. 1,100 - 1,200 Litres |
| Overall Transport Width |
Approx. 1,590 mm |
| Overall Transport Length |
Approx. 3,450 mm |
| Unladen Machine Weight |
Approx. 1,750 kg |
