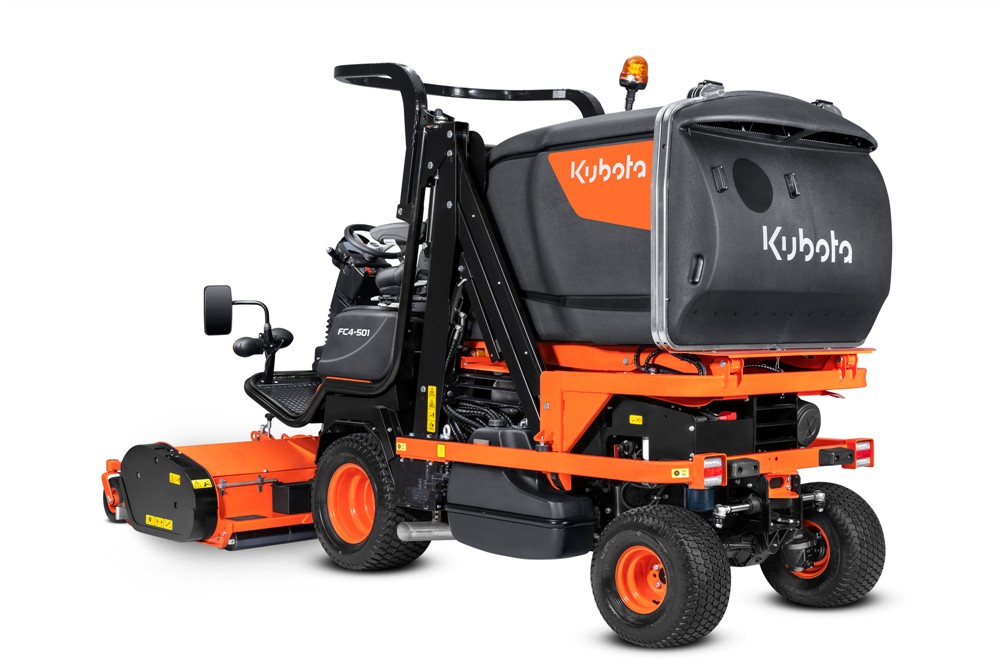

Kubota FC4-501 Up-Front Rotary Mower
The Ultimate Powerhouse Flagship. The Kubota FC4-501 is
built to dominate the largest areas with ease. Delivering a massive 50hp from
its 4-cylinder Stage V engine, this machine ensures high productivity without
sacrificing cut quality. With its vibration-damped platform, 1,300-litre grass
collector, and permanent 4WD, it sets the professional standard for comfort and
capacity in the field.

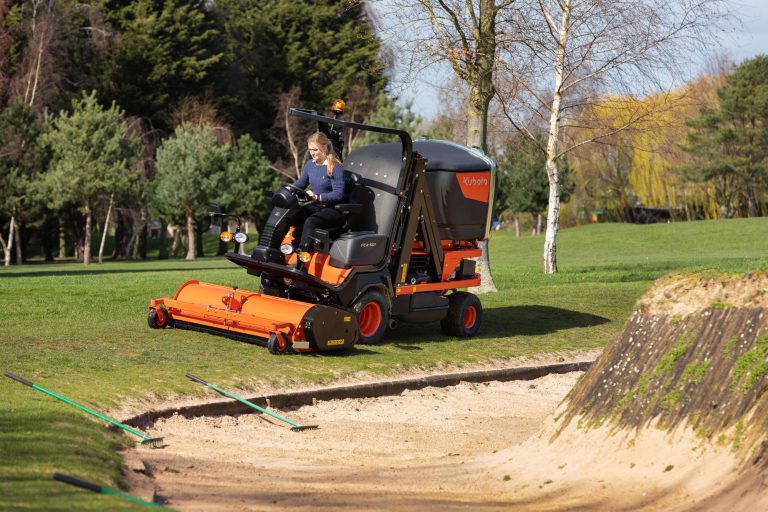

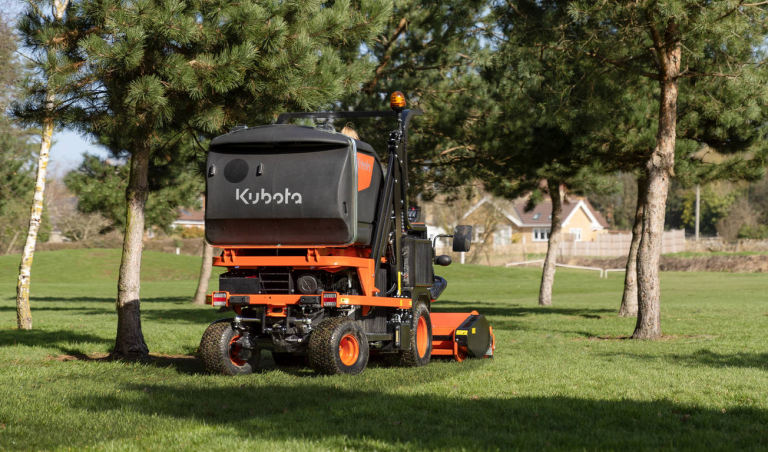

FC4-501 in Action
View
technical specs for the 50hp flagship.
Flagship Performance
- Kubota Engine: 4-cylinder, 2434cc Stage V diesel for
maximum torque.
- E-TVCS Tech: Improved combustion for lower emissions and
fuel consumption.
- Thermal Control: Dual electric reversing fans prevent
overheating during heavy use.

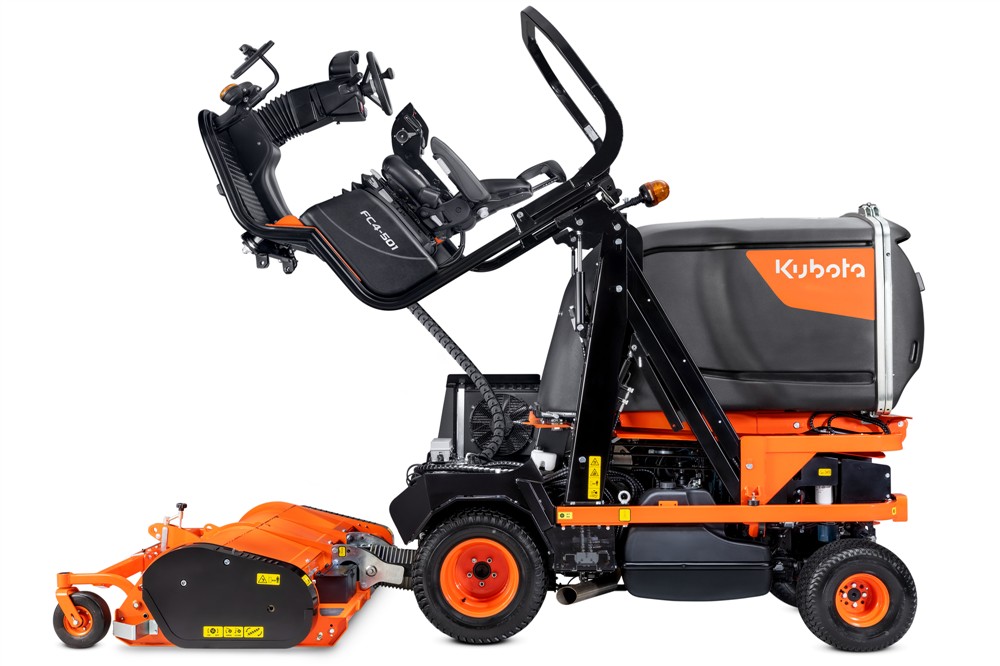

- Serviceability: Easy access to all main components for
rapid maintenance.
Exceptional Comfort
- Suspended Platform: Mounted on silent blocks to eliminate
vibrations.
- Air-Ride Seat: Deluxe air-suspension seat for ultimate
operator comfort.
- Armrest Console: Integrated controls and joystick for
intuitive operation.
- Work Lights: Tilting high-power LED work lights for
extended hours.
Capacity & Traction
- 1300L Hopper: Voluminous collection to minimize time
spent unloading.

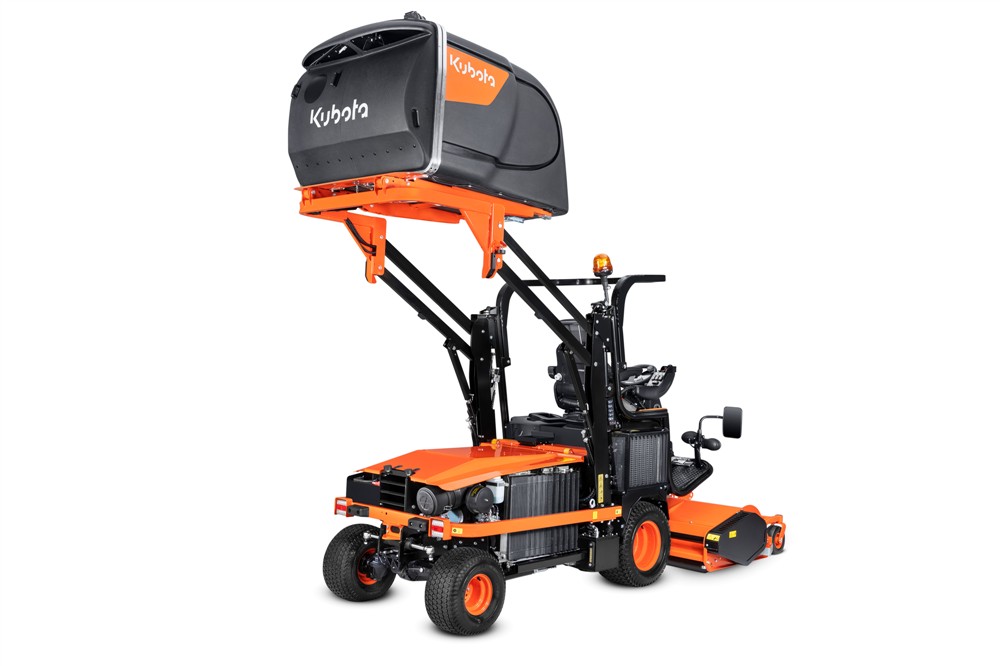

- High-Tip: Unloads safely at 2.30m into skips or
trailers.
- Center Suction: Patented turbine for clog-free grass
transfer in the wet.
- 4WD Drive: Permanent four-wheel drive with differential
lock for steep terrain.
Technical Specifications
| Specification |
Kubota FC4-501 |
| Engine |
Kubota 4-cylinder, 2434cc, Stage V Diesel |
| Max Power |
50 hp |
| Transmission |
4WD HST (Hydrostatic) |
| Mower Decks |
59” Rotary / 61” Flail |
| Collecting System |
Center collect with suction turbine |
| Collector Capacity |
1,300 Litres (High-Tip) |
| Fuel Tank |
30 Litres |
SKU:
.NFC4-501
