New Kubota KC110HR-4SL-4 Tracked Dumper
Self-Loading Capability, 180° Swivel Tipping, Maximum Compact
Efficiency. The Kubota KC110HR-4SL-4 is the ultimate versatile mini
tracked carrier designed for solo operator efficiency on compact construction,
landscaping, and site clearance projects. Powered by a reliable Stage V
compliant Kubota air-cooled diesel engine, this carrier packs a 1,000 kg payload
capacity into an ultra-narrow frame width of just 880 mm. Equipped with an
integrated hydraulic self-loading shovel arm and a 180° hydraulic swivel skip,
the KC110HR-4SL-4 allows a single operator to load, transport, and side-dump
materials effortlessly into tight trenches or over retaining obstacles without
requiring additional loader machinery.
Hydraulic Self-Loader
- Integrated Loading Shovel: Heavy-duty hydraulic front
loader arm allows single-operator self-loading of loose materials.
- Independent Control: Proportional hydraulic levers give
precise control over loader arms and bucket rotation.
- Maximized Efficiency: Eliminates the need for a separate
excavator or loader on small work sites.
Request
a Quote

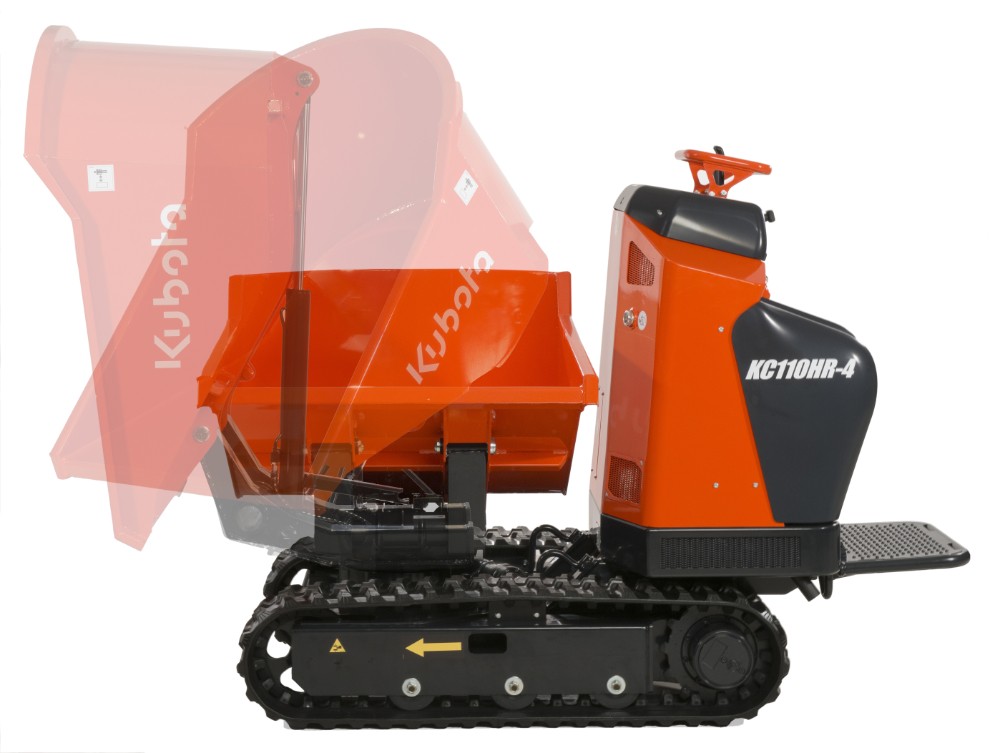

180° Swivel Tipping
- 1,000 kg Payload: Robust skip construction engineered to
transport earth, sand, stone, and demolition waste.

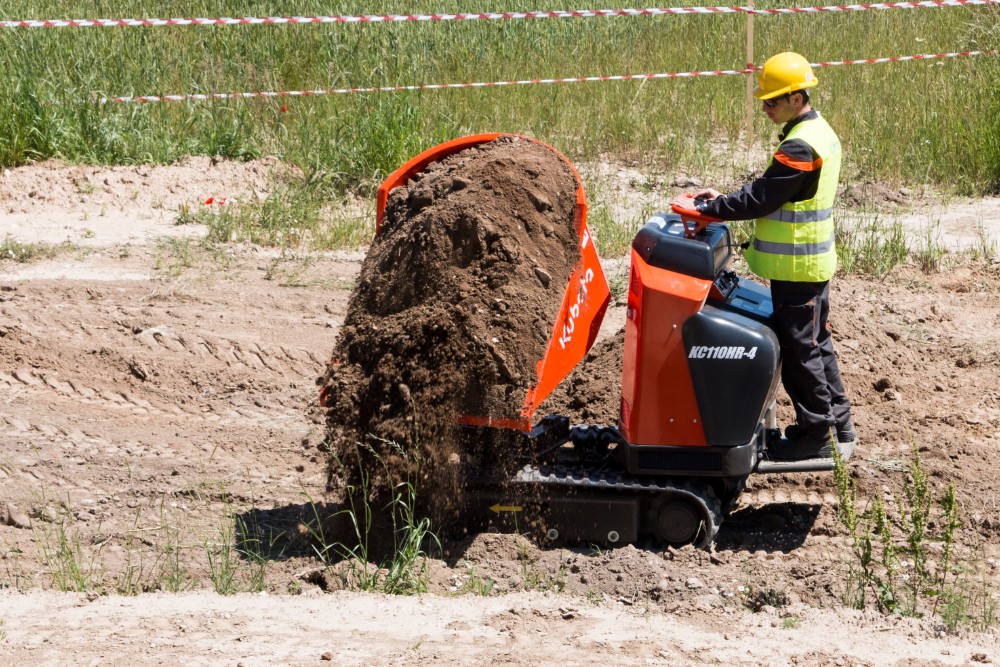

- 180° Hydraulic Rotation: Skip turns 90° to the left and
right for precise side-dumping into trenches or along walls.
- High Dump Angle: Steep tipping angle guarantees clean,
rapid discharge of sticky materials.
Ultra-Narrow Footprint
- 880 mm Chassis Width: Easily navigates narrow garden
gates, tight alleyways, and restricted doorways.
- Hydrostatic Transmission: Variable displacement pumps
deliver smooth speed control and effortless steering turns.
- Rubber Track Traction: High-grip rubber crawlers exert
low ground pressure to protect turf and finished surfaces.
Operator Safety & Access
- Foldable Operator Platform: Ergonomic stand-on footplate
reduces operator fatigue and folds up for transit.
- Intuitive Control Layout: Color-coded control levers are
logically positioned for smooth, effortless operation.
- Stage V Engine Efficiency: Low noise, fuel-efficient
Kubota diesel engine delivers dependable all-day
performance.
Technical Specifications - Kubota
KC110HR-4SL-4 Tracked Dumper
| SPECIFICATION |
DETAILS |
| Payload Capacity |
1,000 kg |
| Operating Weight |
1,010 kg |
| Engine Model |
Kubota OC95 (Stage V Compliant) |
| Engine Type |
Single-Cylinder Air/Oil-Cooled Diesel |
| Engine Power Output |
7.0 kW / 9.5 PS @ 3,600 rpm |
| Self-Loading System |
Hydraulic Front Self-Loading Shovel Arm |
| Skip Mechanism |
180° Hydraulic Swivel Skip (90° Left / 90° Right) |
| Heaped Skip Capacity |
0.52 m³ |
| Transmission Type |
Hydrostatic (HST) 2-Speed |
| Max Travel Speed |
5.2 km/h |
| Overall Transport Width |
880 mm |
| Overall Transport Height |
1,430 mm |
| Overall Transport Length |
2,640 mm (with shovel down) |
| Max Gradeability |
20° (36%) |
| Operator Station |
Folding Stand-On Rear Platform |
