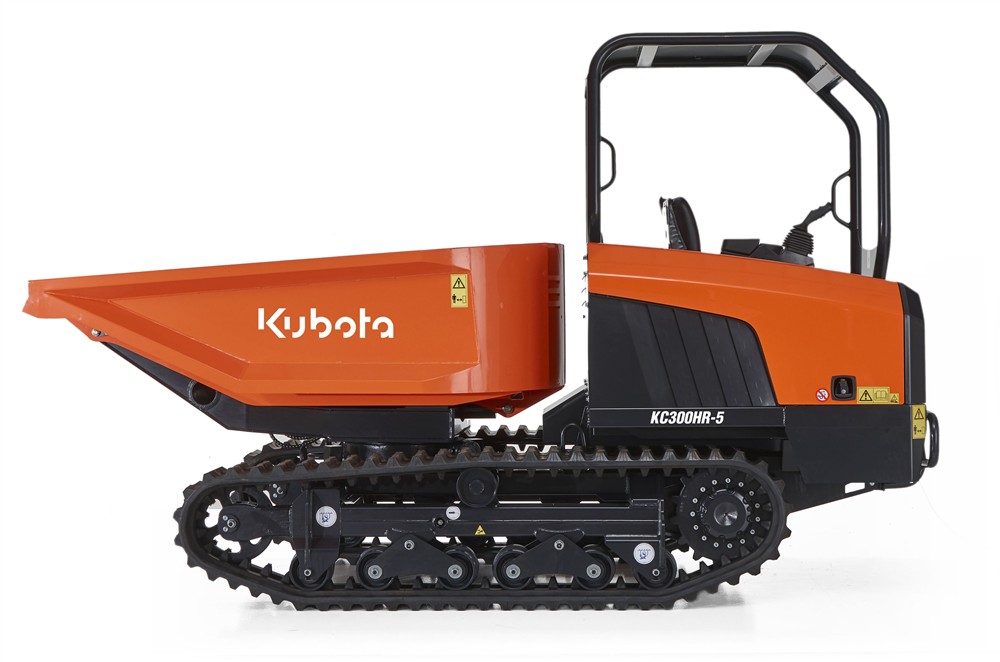

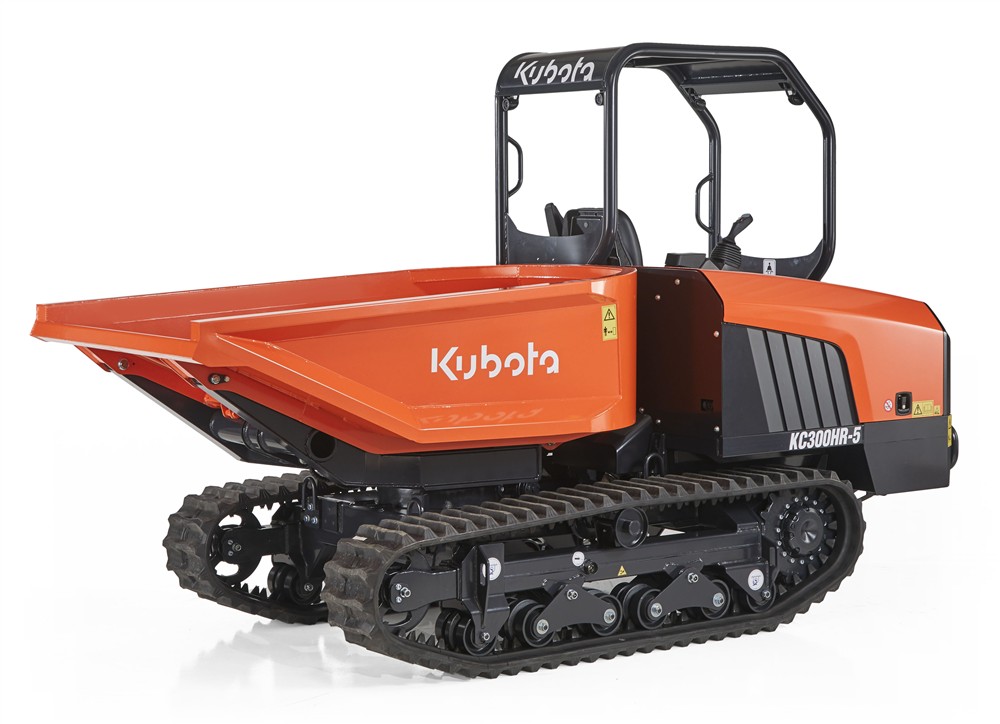

New Kubota KC300HHR-5 Tracked Dumper
Heavy Payload Capacity, 180° Hydraulic Swivel Tipping, Superior
All-Terrain Performance. The Kubota KC300HHR-5 is a powerful,
heavy-duty tracked dumper engineered for maximum productivity across
challenging construction, civil engineering, and landscaping sites. Driven by a
clean-burning Stage V compliant Kubota 45 PS (33.0 kW) diesel engine, this
robust carrier boasts a massive 2,870 kg payload capacity. Featuring a 180°
hydraulic swivel skip function, variable displacement hydrostatic transmission,
and heavy-duty rubber tracks with tensioning rollers, the KC300HHR-5 enables
accurate side-tipping into tight trenches or along narrow roadways while
preserving ground stability on steep or soft terrain.
Stage V Engine & HST Drive
- 45 PS Kubota Diesel Engine: High-torque 4-cylinder Stage
V engine designed for heavy material handling.
- Hydrostatic Transmission: Dual-variable displacement
pumps provide smooth, stepless speed adjustments up to 11 km/h.
- Automatic Speed Shift: Automatically downshifts for
maximum torque when climbing steep gradients or navigating heavy
mud.
Request a
Quote
180° Swivel & Heavy Payload
- 2,870 kg Payload Capacity: Heavy-duty skip construction
handles dense stone, earth, and demolition rubble.

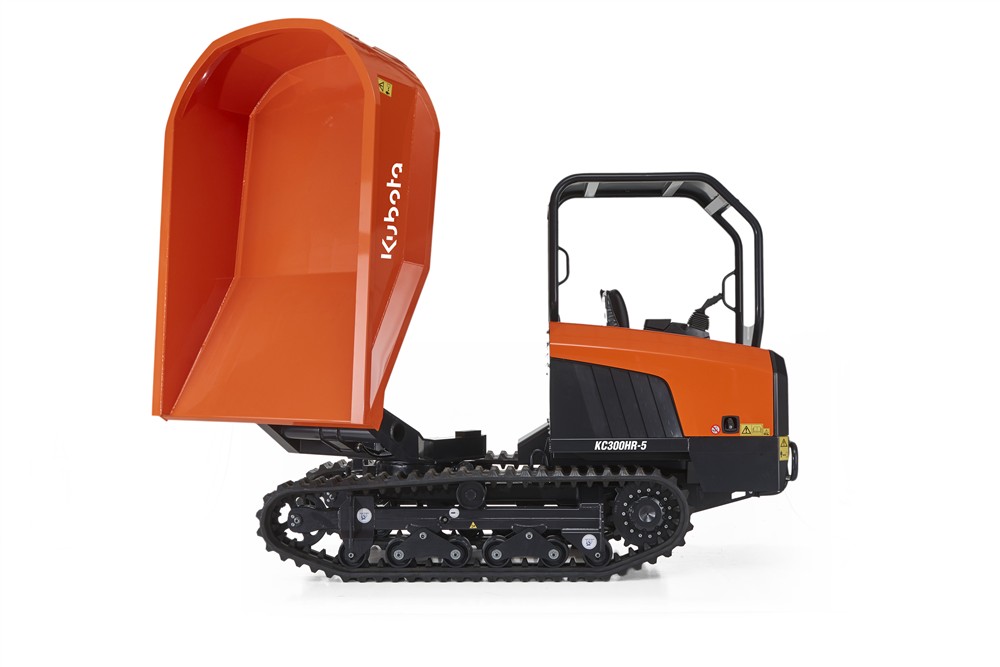

- 180° Hydraulic Swivel: Skip rotates 90° left and right to
dump material precisely alongside trenches or tight boundaries.
- Rapid Cycle Times: Powerful hydraulic tipping rams
deliver fast dumping and quick bucket return.
Operator Comfort & Control
- Reversible Operator Seat: Swivels 180° allowing the
driver to face backward for safer rearward driving and dumping.
- Multi-Function Joystick: Single-lever control manages all
travel, steering, and skip tipping operations smoothly.
- ROPS/FOPS Structure: Standard folding safety bar and
protective screen guard safeguard the operator.
Traction & Serviceability
- Heavy-Duty Tracks: Wide rubber crawlers deliver minimal
ground pressure and superior grip on soft, wet soil.
- Oscillating Rollers: Bogie-type track rollers absorb
terrain impacts for a smoother ride over rough obstacles.
- Kubota Anti-Theft: Coded key immobilizer system included
as standard to protect your machinery asset.
Technical Specifications - Kubota KC300HHR-5
Tracked Dumper
| SPECIFICATION |
DETAILS |
| Payload Capacity |
2,870 kg |
| Operating Weight |
2,700 kg |
| Engine Model |
Kubota V2403-CR-TE5 (Stage V Turbo Diesel) |
| Engine Power Output |
33.0 kW / 45 PS @ 2,200 rpm |
| Engine Displacement |
2,434 cc (4-Cylinder) |
| Skip Mechanism |
180° Hydraulic Swivel Skip (90° Left / 90° Right) |
| Heaped Skip Capacity |
1.49 m³ |
| Transmission Type |
Hydrostatic (HST) with 2-Speed Auto-Shift |
| Max Travel Speed |
11 km/h |
| Max Gradeability |
30° (57%) |
| Crawler / Track Width |
320 mm |
| Overall Transport Width |
1,550 mm |
| Overall Transport Height |
2,685 mm (ROPS Up) / 2,330 mm (ROPS Down) |
| Overall Transport Length |
3,615 mm |
| Ground Clearance |
330 mm |
| Anti-Theft Protection |
Kubota Coded Key Immobilizer System Standard |
