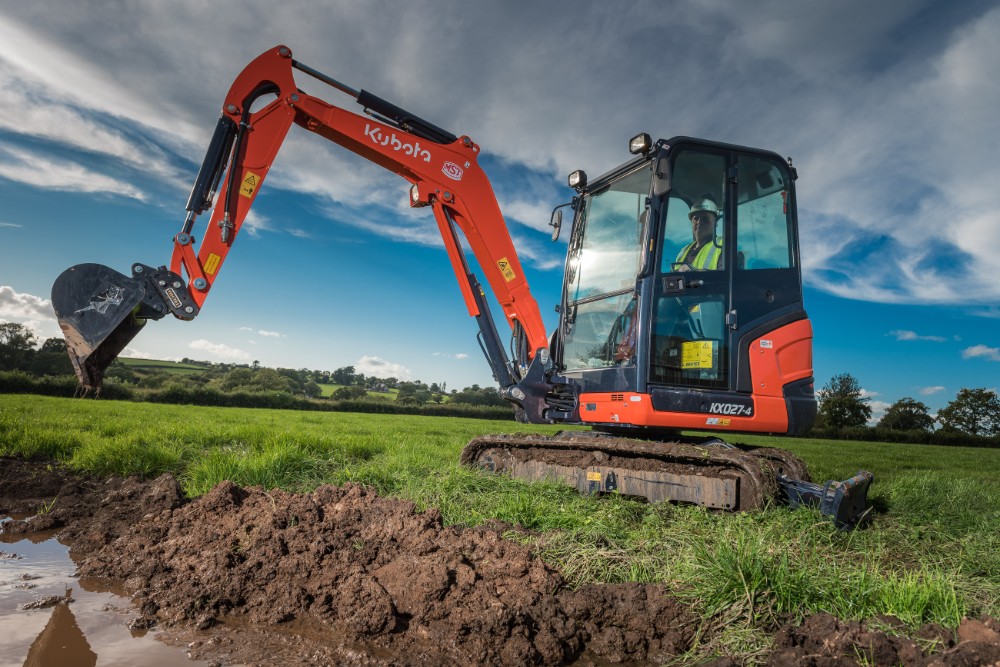

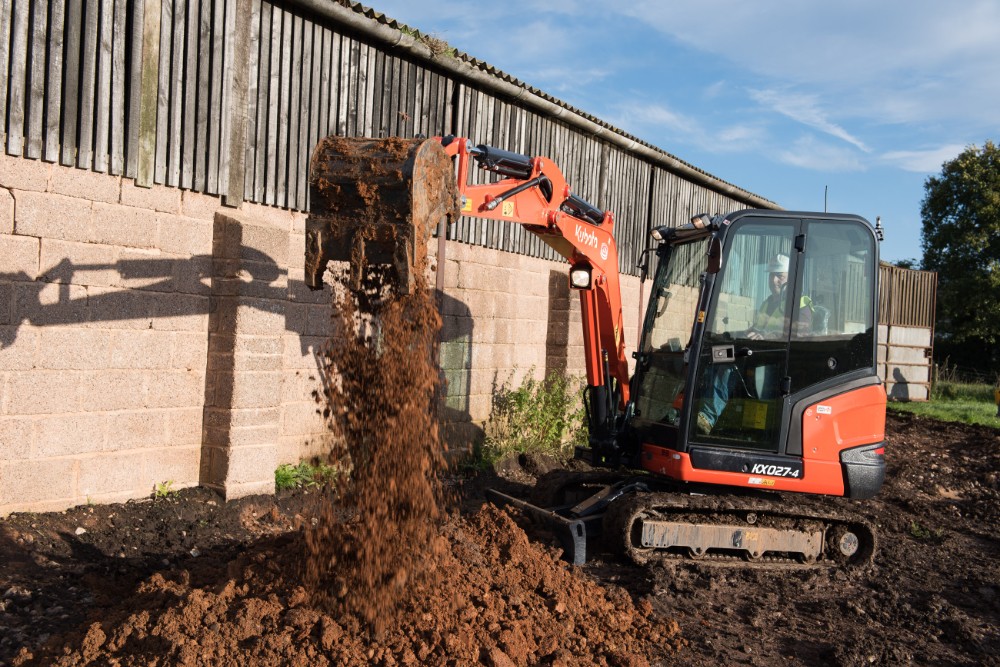

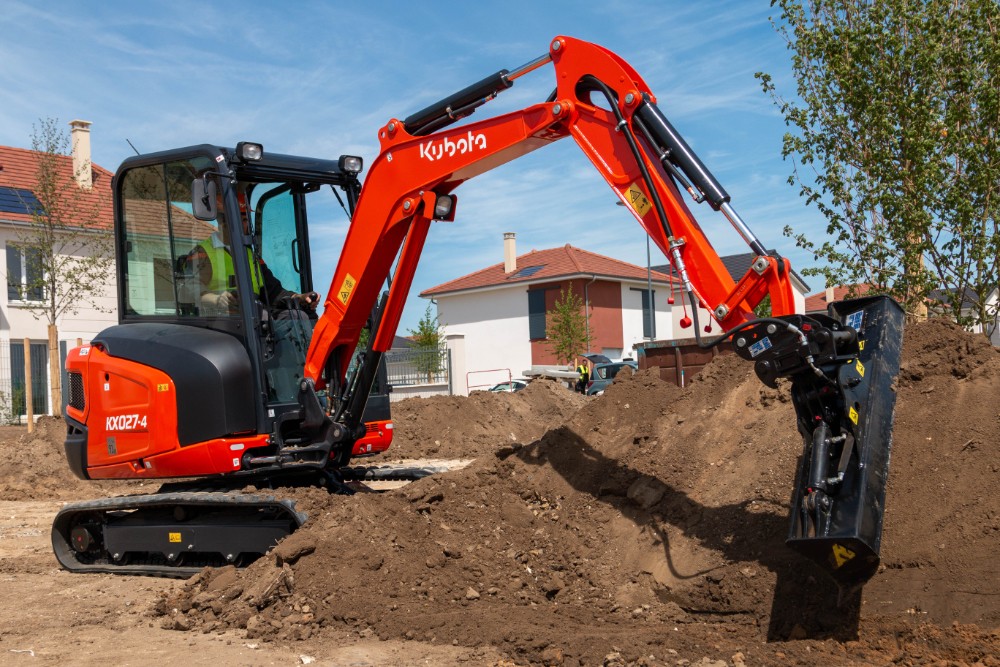

New Kubota KX027-4 HGL Canopy Mini
Excavator
Uncompromised Power, Panoramic Visibility: Premium 2.7-Tonne
Performance with Extended Reach. The Kubota KX027-4 HGL brings
heavy-duty excavation power into a highly maneuverable 2.7-tonne frame. As a
conventional swing machine, it features a beautifully balanced chassis that
delivers elite stability and digging force when tackling tough clay or heavy
lifting cycles. This premium **HGL** specification features an open **4-Post
Safety Canopy** that yields a completely unhindered 360-degree site visibility
matrix—allowing operators to easily communicate with ground crews and track
obstructions safely. Outfitted with a factory-extended **Long Arm** assembly
sitting on rugged, high-grip **Rubber Tracks**, the KX027-4 HGL maximizes your
working envelope with superior digging depths and dumping clearances, making it
an indispensable asset for groundworks, civil engineering, and larger utility
applications.
360° Safety Canopy
- Flawless Site Blindspots: Open structure eliminates cab
glass glare and corner posts, ensuring absolute view of your bucket teeth and
workers.
- ROPS/FOPS Safety Kit: Robust structural design provides
certified overhead protection against rollover and falling debris
hazards.
- Fast Operator Transitions: Door-free entryway cuts down
on cab management, letting operators step on or off controls
instantly.
Request a
Quote
Factory Long Arm Reach
- Expanded Working Envelope: The factory-engineered long
arm unlocks superior reach at ground level and greater trenching depths.
- High Dumping Clearances: Simplifies material handling by
effortlessly reaching over high-sided commercial tippers and skips.
- Reduced Moving Cycles: Long-reach engineering means fewer
machine repositions along open trenches, preserving site speed.
Conventional Stability
- Rock-Solid Digging Base: Conventional tail design
provides an ultra-stable counterweight layout for heavy-lifting tasks.
- Durable Fixed Track Frame: Heavy-duty, rigid fixed
undercarriage distributes structural stresses perfectly for reliable long-term
tracking.
- Ergonomic Command Pad: Features an extra-wide floor
space, premium suspension seating, and user-friendly pilot control
joysticks.
Smooth Kubota Power
- Stage V Diesel Engine: Driven by a clean, reliable,
liquid-cooled Kubota engine delivering smooth hydraulic distribution.
- Proportional Aux Hydraulics: Plumbed directly to the arm
end to comfortably manage dynamic hydraulic attachments.
- Factory Anti-Theft Setup: Fully secured via Kubota's
industry-coded electronic immobilizer keys for complete site
security.
Technical Specifications - Kubota KX027-4 HGL
(Canopy Long Arm)
| SPECIFICATION |
DETAILS |
| Operating Weight |
2,595 kg |
| Engine Model |
Kubota V1505-E4-BH-2 (Stage V Liquid-Cooled Diesel Engine) |
| Engine Output |
17.5 kW / 24.4 PS @ 2200 rpm |
| Operator Station |
Open 4-Post Canopy (ROPS / FOPS Certified) |
| Track Configuration |
High-Performance Premium Rubber Tracks |
| Undercarriage Type |
Heavy-Duty Fixed Track Frame |
| Arm Configuration |
Factory-Extended Long Arm Variant |
| Auxiliary Hydraulic Lines |
Proportional Single-Line Piping to Arm End |
| Max. Digging Depth |
2,740 mm |
| Max. Digging Reach |
4,720 mm |
| Max. Dumping Height |
3,240 mm |
| Bucket Breakout Force |
22.1 kN (2,250 kgf) |
| Fuel Tank Capacity |
48 Litres |
| Anti-Theft Protection |
Kubota Thatcham-Approved Coded Key
Immobilizer |
| Model Code |
Configuration / Specification |
Product Code |
| KX027-4 HGL |
Canopy, Rubber Tracks, Fixed Undercarriage, Long Arm |
RGJ1613250 |
| KX027-4 HGL Hi |
Canopy, Rubber Tracks, Fixed Undercarriage, Long Arm, Hi-Spec - Proportional Auxiliary 1&2, Auto Shift Travel |
RGJ1733250 |
| KX027-4 GL |
Cabin, Rubber Tracks, Fixed Undercarriage, Long Arm |
RGJ1623250 |
| KX27-4 GL Hi |
Cabin, Rubber Tracks, Fixed Undercarriage, Long Arm, Hi-Spec - Proportional Auxiliary 1&2, Auto Shift Travel |
RGJ1743250 |
