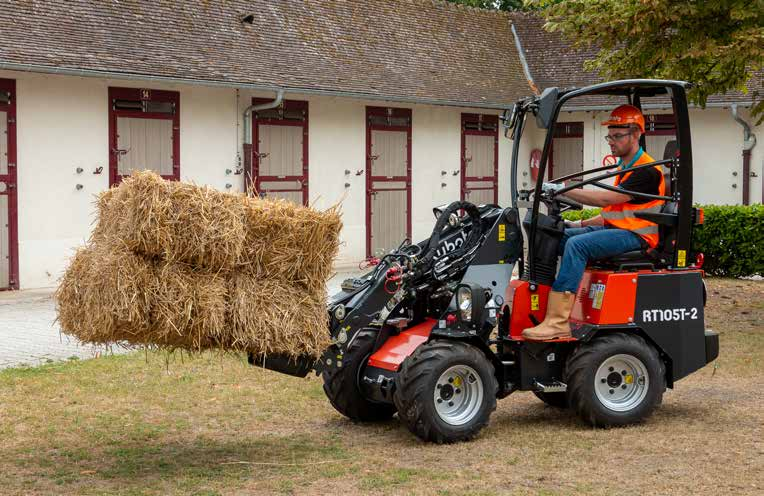

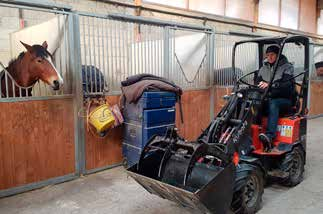

New Kubota RT105T-2 Telescopic Wheeled
Loader
Ultra-Compact Footprint, Extended Telescopic Reach: Maximum
Versatility. The Kubota RT105T-2 brings serious lifting height to tight
work environments. Powered by a reliable, Stage V compliant 25 PS (17.5 kW)
Kubota 3-cylinder diesel engine, this ultra-compact loader combines exceptional
maneuverability with an impressive telescopic boom reaching up to 2,740 mm at
the hinge pin. Featuring single-pedal Hydrostatic Transmission (HST) driving
four Poclain wheel motors, an articulated 45° chassis turning angle, and
standard differential lock, the RT105T-2 navigates narrow farm buildings, busy
construction sites, and delicate landscaping plots with total ease and minimal
surface disturbance.
Telescopic Boom Reach
- 2,740 mm Lift Height: High telescopic extension easily
loads high-sided trailers and stacks material at height.
- Compact Mechanical Hitch: Kubota compact hydraulic
coupler allows fast, safe switching between forks and buckets.
- Parallel Lifting: Integrated parallel lift kinematics
maintain level load handling throughout the lift cycle.
Request a Quote
Agile Hydrostatic Drive
- 4 Wheel Motors: Engine power is routed efficiently via 4
heavy-duty Poclain hydraulic motors for maximum push force.
- 45° Articulated Chassis: Central pivoting chassis
provides an ultra-tight turning radius down to 1,967 mm.
- Differential Lock: Electronically controlled differential
lock ensures supreme traction on wet or loose ground.
Clean Stage V Diesel Engine
- Kubota D902 Engine: Proven 3-cylinder, 900cc diesel
powerplant delivering low noise, fuel efficiency, and clean emissions.
- Single-Pedal Control: Integrated inching pedal controls
both travel speed and hydraulic flow seamlessly.
- 500-Hour Intervals: Long maintenance intervals and
wide-opening engine bonnet for effortless daily servicing.
Operator Safety & Comfort
- ROPS/FOPS Canopy: Certified protective structure with
wrap-around 360° visibility over the working area.
- Ergonomic Layout: Multi-function joystick,
weight-adjustable seat, and tiltable steering column reduce fatigue.
- Site Safety Pack: Fitted with LED flashing beacon,
high-visibility seatbelt, and reversing warning buzzer.
Technical Specifications - Kubota RT105T-2
Wheeled Loader
| SPECIFICATION |
DETAILS |
| Operating Weight |
1,200 kg |
| Engine Model |
Kubota D902 (Stage V Compliant) |
| Engine Power |
17.5 kW / 25 PS @ 2,300 rpm |
| Transmission Type |
Hydrostatic (HST) with Single-Pedal Control |
| Wheel Motors |
4 x Heavy-Duty Poclain Hydraulic Motors |
| Max. Lift Height (Hinge Pin) |
2,740 mm (Telescopic Extended) |
| Tipping Load (Straight) |
460 kg |
| Turning Angle / Radius |
45° Articulation / 1,967 mm Turning Radius |
| Overall Transport Width |
920 mm (min, standard tires) |
| Overall Transport Height |
2,060 mm |
| Overall Length (with Bucket) |
2,927 mm |
| Max Travel Speed |
15 km/h |
| Auxiliary Hydraulics |
Mechanical AUX Line Control (Up to 3 Circuits Available) |
| Safety Structures |
ROPS / FOPS Certified Canopy Structure |
