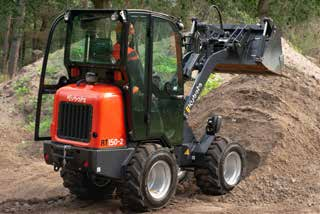

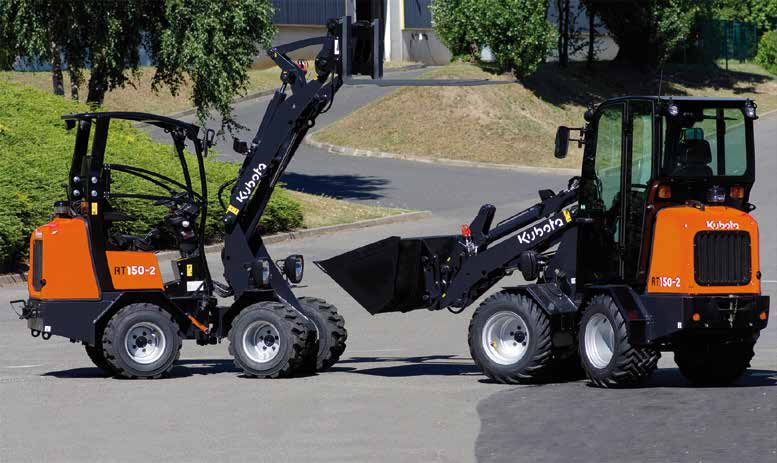

New Kubota RT150-2 Wheeled Loader
Compact Power, High Lifting Capacity, Unrivalled Agility.
The Kubota RT150-2 brings exceptional strength and versatility to tight working
spaces. Powered by a Stage V compliant 26 PS (19 kW) Kubota 3-cylinder diesel
engine, this articulated compact loader combines impressive lifting height and
bucket breakout force with smooth, precise operation. Engineered with a
heavy-duty hydrostatic 4-wheel drive system powered by Poclain hydraulic motors,
an articulated steering joint with 45° oscillation, and an ergonomic operator
station, the RT150-2 handles tough materials on farms, construction sites, and
landscaping projects with complete ease.
Hydrostatic 4-Wheel Drive
- Poclain Motors: Dedicated hydraulic motors on all four
wheels provide powerful pushing torque and continuous traction.
- Stage V Diesel Engine: Dependable 26 PS Kubota D1105
engine delivers high performance with low emissions and fuel consumption.
- Differential Lock: On-demand 100% electrical differential
lock keeps you moving through heavy mud and soft ground.
Request a Quote
Impressive Reach & Hydraulics
- 2,558 mm Hinge Pin Height: Generous dump reach makes
clearing high trailer sides and hoppers simple.
- Hydraulic Quick-Hitch: Change buckets and forks instantly
without stepping off the operator platform.
- High Auxiliary Flow: 42 L/min hydraulic flow seamlessly
powers demanding hyd-driven attachments.
Ultra-Compact Articulation
- 45° Central Articulation: Pivoting chassis joint delivers
a tight turning radius for navigating restricted pathways.
- Oscillating Frame: Maintains continuous ground contact
and stability across rough, rutted terrain.
- Slender Width: Compact frame width starting at 890 mm
allows easy access through narrow gates and barn doorways.
Operator Safety & Comfort
- Panoramic Sightlines: ROPS/FOPS certified platform offers
full 360° visibility over working areas and attachments.
- Multi-Function Joystick: Single-lever control for loader
arms, bucket position, and auxiliary circuit functions.
- Standard Safety Kit: Equipped with an LED flashing
beacon, reversing warning alarm, and high-visibility
seatbelt.
Technical Specifications - Kubota RT150-2
Wheeled Loader
| SPECIFICATION |
DETAILS |
| Operating Weight |
1,525 kg (Canopy) / 1,730 kg (Cab) |
| Engine Model |
Kubota D1105 (Stage V Compliant) |
| Engine Power Output |
19 kW / 26 PS @ 3,000 rpm |
| Engine Displacement |
1,123 cc (3-Cylinder Diesel) |
| Travel Transmission |
Hydrostatic (HST) via 4 Poclain Wheel Motors |
| Differential Lock |
100% Electrical Differential Lock on Both Axles |
| Max. Lift Height (Hinge Pin) |
2,558 mm |
| Tipping Load (Straight) |
580 kg |
| Auxiliary Hydraulic Flow |
42 L/min @ 170 bar |
| Quick-Hitch System |
Hydraulic Quick-Coupler System |
| Overall Transport Width |
890 mm (min) / 1,240 mm (max) |
| Overall Transport Height |
2,230 mm |
| Overall Length (with Bucket) |
3,360 mm |
| Max Travel Speed |
12 km/h (Option up to 19 km/h) |
| Safety Structures |
ROPS / FOPS Certified Frame or Closed Cab |
