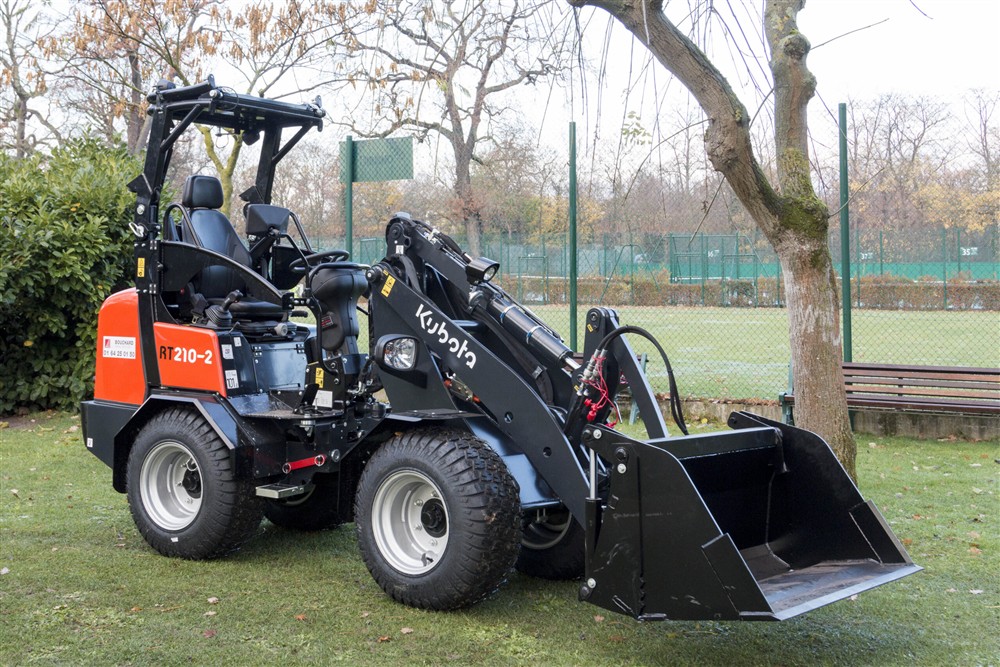

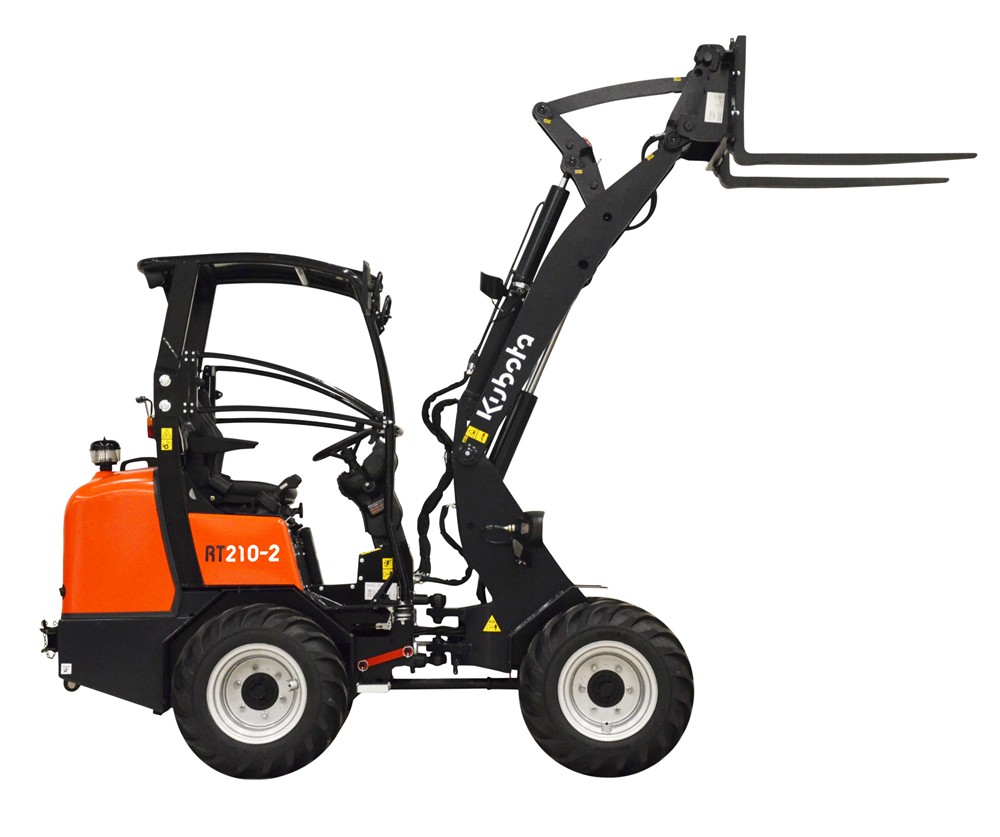

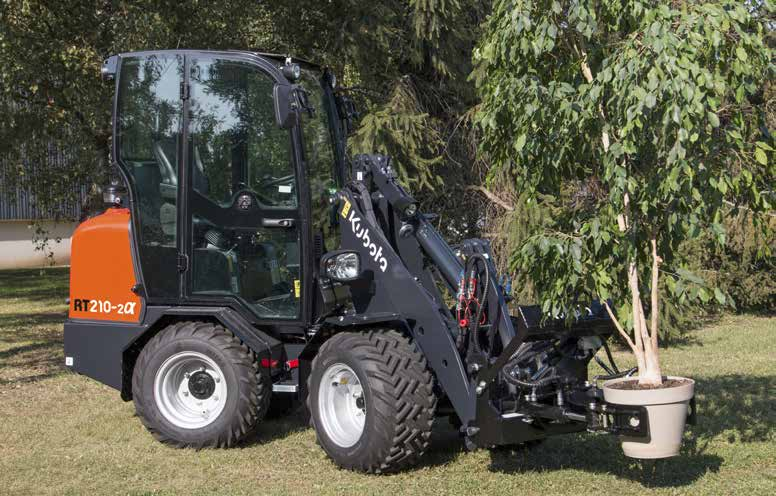

New Kubota RT210-2 Alpha Wheeled Loader
Compact Agility, Superior Lifting Power: High-Performance Articulated
Loader. The Kubota RT210-2 Alpha combines powerful performance with
exceptional agility, making it the ideal articulated loader for narrow site
navigation, agriculture, landscaping, and construction work. Powered by a Stage
V compliant Kubota 26 HP diesel engine, this machine delivers high torque,
rapid working cycles, and outstanding lifting capabilities relative to its
compact frame. Built with heavy-duty planetary axles, hydrostatic 4-wheel
drive, and an intuitive multi-function joystick, the RT210-2 Alpha ensures
maximum traction and smooth material handling across uneven ground. With its
stable articulated steering joint, low center of gravity, and high hinge-pin
reach, it offers operators an all-around efficient solution for heavy loading
tasks.
Articulated Agility & Drive
- Stage V Diesel Engine: Dependable 26 HP Kubota
direct-injection engine provides clean, fuel-efficient performance.
- Hydrostatic 4WD: Automotive-style hydrostatic
transmission delivers smooth, continuous power to all four wheels.
- Heavy-Duty Axles: Planetary final drives provide high
pushing force and exceptional traction on soft terrain.
Request a Quote
Proportional Hydraulics
- High-Capacity Pump: Powerful hydraulic system ensures
rapid cycle times and impressive bucket breakout forces.
- Hydraulic Quick-Coupler: Enables fast, effortless
attachment changes without leaving the driver's seat.
- Multifunction Joystick: Single-lever control for loader
arms, bucket roll, and auxiliary hydraulic functions.
Operator Comfort & Safety
- Panoramic Visibility: Low-profile engine hood and open
canopy/cab setup offer clear sightlines to attachments.
- Ergonomic Seating: Fully adjustable suspension seat and
adjustable steering column keep operator fatigue low.
- ROPS/FOPS Certified: Built to meet strict global safety
standards for complete peace of mind on job sites.
Compact Site Reach
- Narrow Footprint: Slender chassis width allows easy
transit through tight gates, barn doors, and narrow pathways.
- High Hinge-Pin Dump: Generous lift height easily clears
high-sided trailers and tipping hoppers.
- Kubota Anti-Theft: Fitted with standard master key
immobilizer protection for enhanced job site security.
Technical Specifications - Kubota RT210-2
Alpha Wheeled Loader
| SPECIFICATION |
DETAILS |
| Operating Weight |
2,100 kg |
| Engine Model |
Kubota V1505-CR-TE5 (Stage V Diesel) |
| Engine Output |
19 kW / 26 PS @ 2,300 rpm |
| Travel Transmission |
Hydrostatic 4-Wheel Drive (2-Speed Automatic) |
| Differential Lock |
100% Electrical Differential Lock on Both Axles |
| Operator Station |
ROPS / FOPS Safety Frame / Canopy Setup |
| Hydraulic System Capacity |
45 L/min @ 180 bar |
| Quick-Hitch System |
Hydraulic Quick-Coupler System |
| Max. Lift Height (Hinge Pin) |
2,820 mm |
| Tipping Load (Straight) |
1,450 kg |
| Overall Transport Width |
1,080 mm (standard tires) |
| Max Travel Speed |
20 km/h |
| Anti-Theft Protection |
Kubota Coded Key Immobilizer System |
