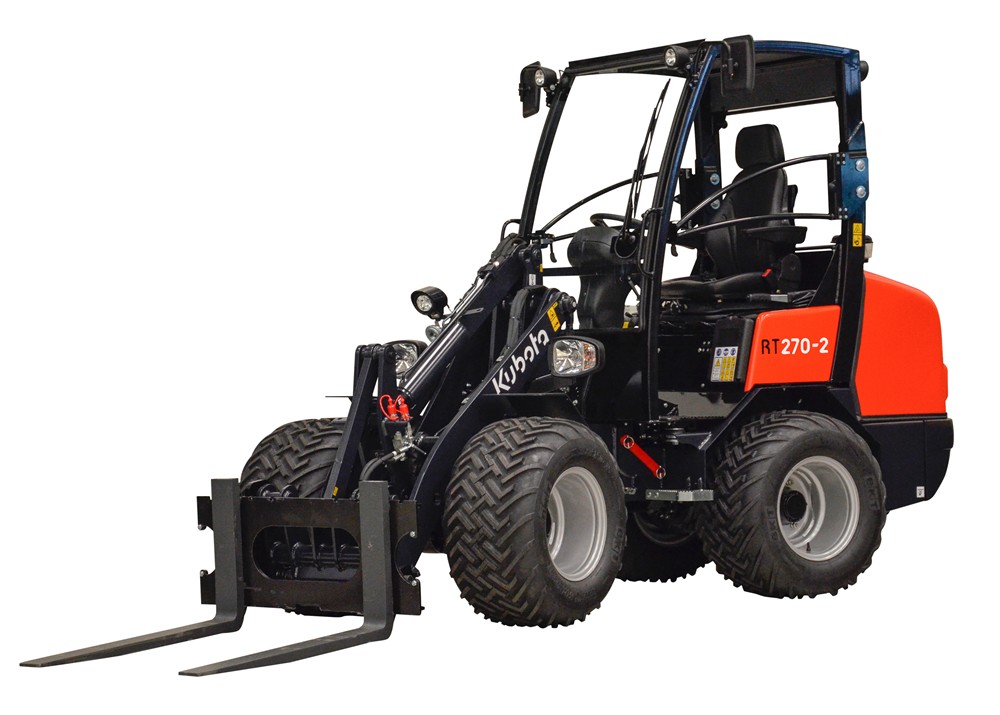

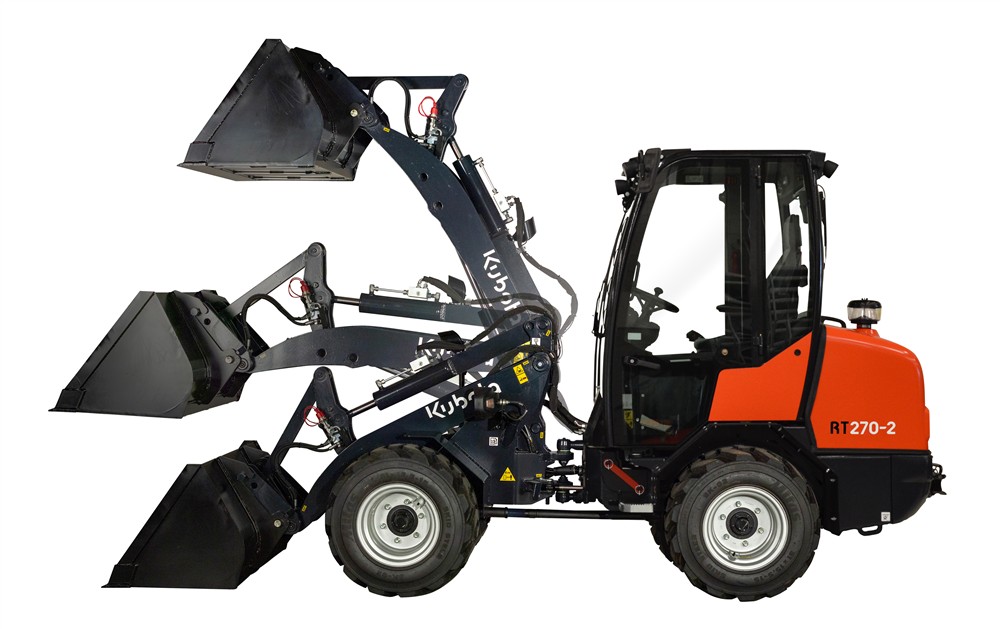

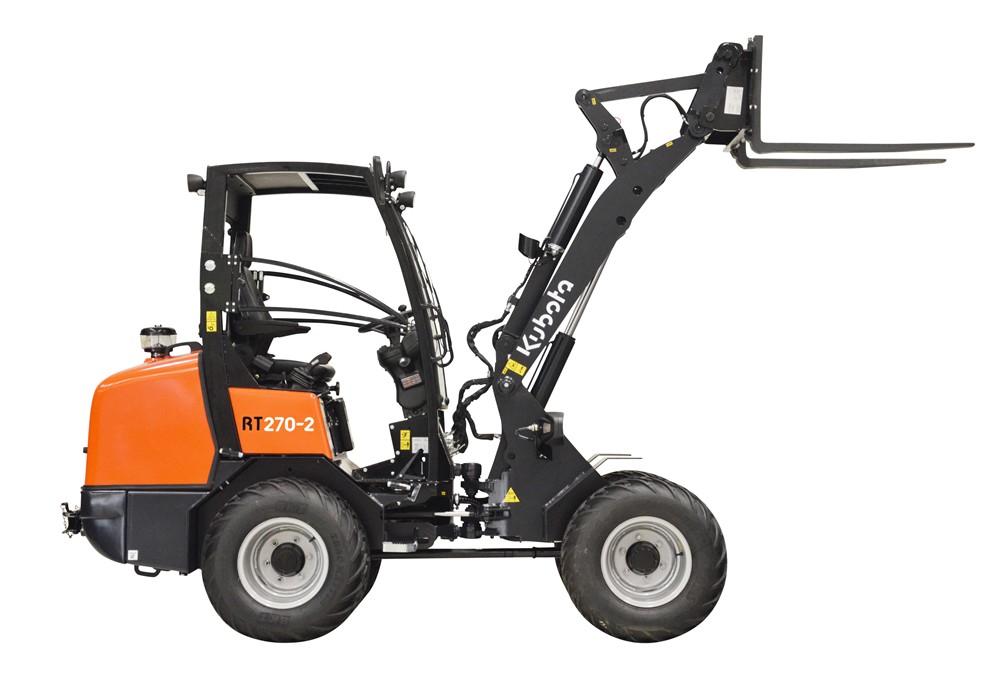

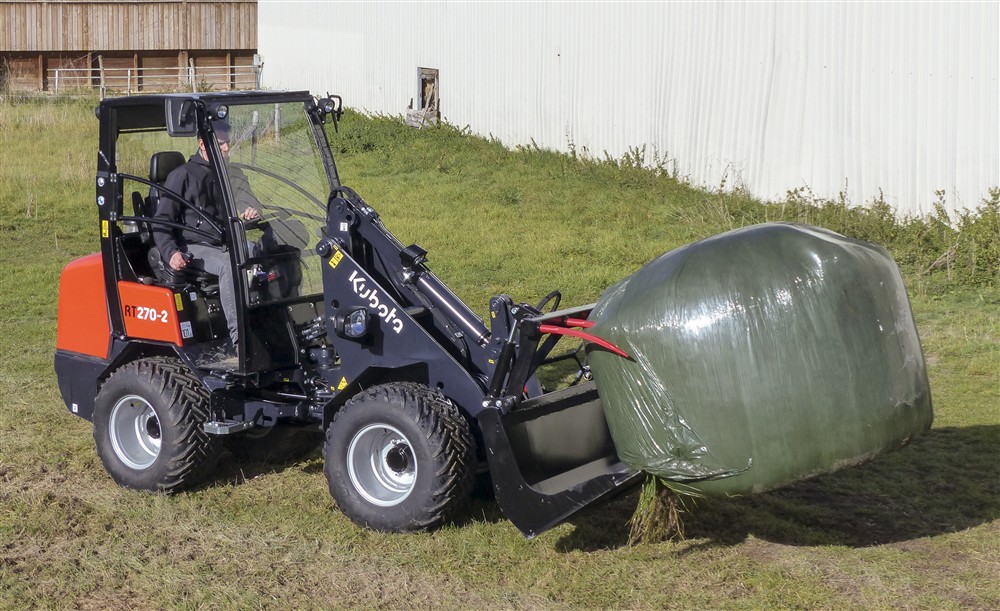

New Kubota RT270-2 Alpha Wheeled Loader
Superior Lifting Capacity, High Torque Performance, Heavy-Duty
Versatility. The Kubota RT270-2 Alpha is engineered for heavy lifting
and demanding material handling tasks across agricultural, construction, and
municipal applications. Powered by a high-performance Stage V compliant 50 PS
(36.5 kW) Kubota 4-cylinder turbocharged diesel engine, this articulated loader
delivers exceptional tipping loads and rapid cycle times. Featuring heavy-duty
12-tonne planetary axles, a 2-speed automotive hydrostatic 4-wheel drive
system, and an electronic differential lock, the RT270-2 Alpha ensures maximum
traction and stability on soft or uneven ground while easily handling heavy
palletized and bulk loads.
High-Power Stage V Drive
- 50 PS Kubota Turbo Engine: Clean-burning 4-cylinder Stage
V diesel engine delivers massive torque at low RPM.
- 12-Tonne Axles: Heavy-duty planetary axles provide
exceptional pushing force and gear durability.
- Hydrostatic 2-Speed 4WD: Automotive-style HST
transmission gives smooth acceleration up to 20 km/h.
Request a Quote
Heavy Lift & Hydraulic Power
- High Tipping Load: Designed for demanding loader work,
easily handling large silage blocks, stone, and heavy pallets.
- High-Capacity Pump: High auxiliary hydraulic flow
efficiently powers heavy attachments like sweepers and grab buckets.
- Hydraulic Euro-Hitch: Standard hydraulic locking
mechanism allows rapid tool switches straight from the seat.
Articulated Stability
- 45° Steering Oscillation: Central articulated joint gives
an ultra-tight turning circle in restricted yards.
- 100% Differential Lock: On-demand electrical locking
differential on both axles ensures complete traction in deep mud.
- Low Center of Gravity: Optimally balanced chassis layout
maintains stability during heavy load turns.
Operator Comfort & Security
- Ergonomic Cabin / Frame: Multi-function joystick with
integrated directional shift for total one-handed control.
- ROPS/FOPS Safety Standard: Certified safety structure
provides panoramic 360° sightlines across the working tool.
- Kubota Anti-Theft: Equipped with standard coded key
immobilizer system for total peace of mind on site.
Technical Specifications - Kubota RT270-2
Alpha Wheeled Loader
| SPECIFICATION |
DETAILS |
| Operating Weight |
2,700 kg (Canopy) / 2,850 kg (Cab) |
| Engine Model |
Kubota V1505-CR-TE5 (Stage V Turbo Diesel) |
| Engine Power Output |
36.5 kW / 50 PS @ 2,300 rpm |
| Engine Displacement |
1,498 cc (4-Cylinder) |
| Travel Transmission |
Hydrostatic 4WD (2-Speed Shift) |
| Axles / Differential Lock |
12-Tonne Planetary Axles with 100% Electrical Diff Lock |
| Max. Lift Height (Hinge Pin) |
2,960 mm |
| Tipping Load (Straight) |
1,900 kg |
| Auxiliary Hydraulic Capacity |
51 L/min @ 210 bar |
| Quick-Hitch System |
Hydraulic Euro-Hitch System Standard |
| Overall Transport Width |
1,300 mm (standard tires) |
| Overall Transport Height |
2,320 mm |
| Overall Length (with Bucket) |
4,115 mm |
| Max Travel Speed |
20 km/h (Option 28 km/h) |
| Anti-Theft Protection |
Kubota Coded Key Immobilizer System |
