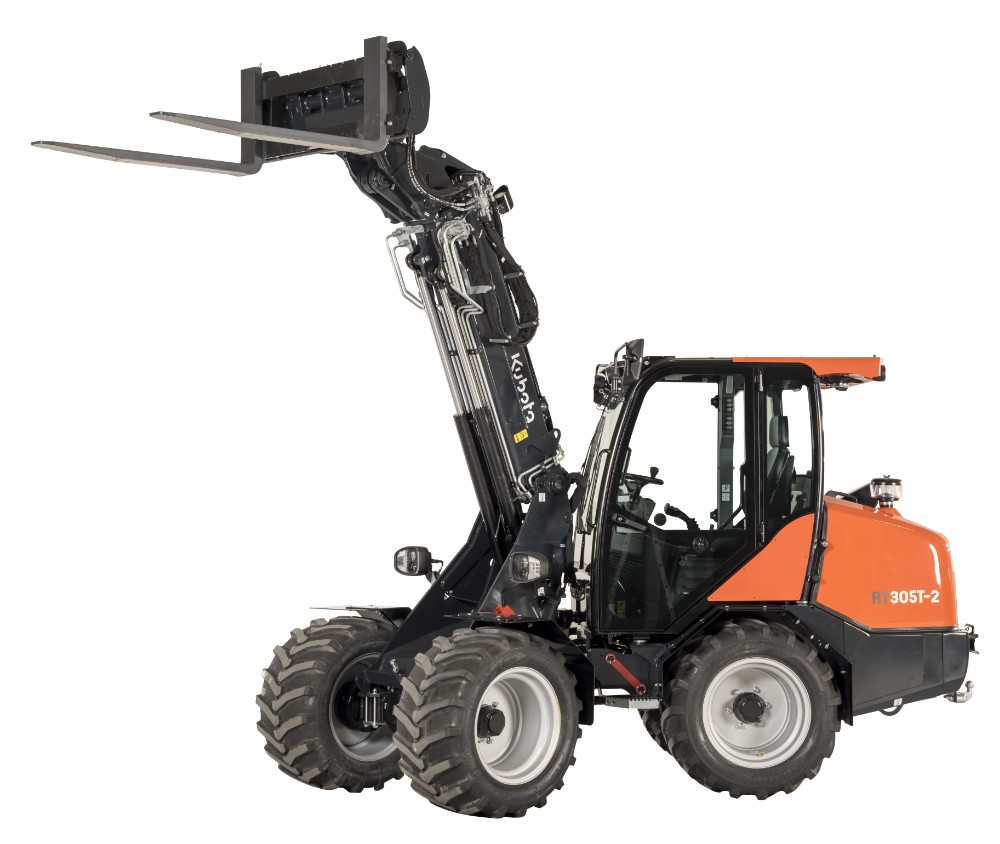

New Kubota RT305-2 Telescopic Wheeled
Loader
High Reach, Outstanding Lift Capacity, Compact All-Terrain
Agility. The Kubota RT305-2 Telescopic Wheeled Loader combines
exceptional lifting height with heavy-duty power, making it an indispensable
asset across construction, agricultural, and materials handling operations.
Powered by a dependable Stage V compliant Kubota diesel engine, the RT305-2
features an extendable telescopic boom that offers impressive reach and dumping
heights while maintaining complete machine stability. With heavy-duty
hydrostatic 4-wheel drive, rigid planetary axles, and a spacious operator
cabin, this telescopic loader easily navigates tight sites and rough terrain
while maximizing productivity.
Kubota Stage V Engine
- Clean Diesel Power: High-torque Stage V compliant Kubota
diesel engine engineered for max power and fuel
efficiency.
- Hydrostatic 4WD: Automotive-type hydrostatic transmission
provides smooth, continuous acceleration and maximum
traction.
- Eco-Mode Efficiency: Optimizes fuel consumption during
transport and light material handling tasks.
Request a Quote
Extended Telescopic Reach
- Extended Lifting Height: Telescopic boom provides maximum
reach for stacking bales, loading high hoppers, and site
material placement.
- Hydraulic Quick Hitch: Effortlessly switch between
buckets, pallet forks, and attachments from inside the cabin.
- Parallel Lift Geometry: Keeps loads level automatically
throughout the entire lifting arc.
Ergonomic Operator Station
- All-Round Visibility: ROPS/FOPS certified safety cab with
360-degree clear sightlines to the working tool.
- Multi-Function Joystick: Single-lever proportional
control for boom functions, telescopic extension, and auxiliary
hydraulics.
- Adjustable Comfort: Fully adjustable suspension seat and
tilt-adjustable steering column for fatigue-free
operation.
Heavy-Duty Undercarriage
- Heavy Planetary Axles: Built to withstand immense loads
and harsh site conditions with minimum maintenance.
- Articulated Steering: Small turning radius enables
effortless operation in confined yards, buildings, and narrow
lanes.
- 100% Differential Lock: Selectable front and rear
differential locks deliver maximum traction on soft or muddy
ground.
Technical Specifications - Kubota RT305-2
Telescopic Loader
| SPECIFICATION |
DETAILS |
| Operating Weight |
Approx. 3,000 kg |
| Engine Power Output |
50 HP / 37 kW @ 2,400 rpm |
| Engine Type |
Kubota 4-Cylinder Turbocharged Diesel (Stage V) |
| Drive System |
Automotive Hydrostatic 4WD (2 Speed) |
| Maximum Hinge Pin Height |
Approx. 4,300 mm (Fully Extended) |
| Tipping Load (Straight / Fully Articulated) |
Approx. 2,050 kg / 1,450 kg |
| Travel Speed (Low / High Range) |
0 - 10 km/h / 0 - 25 km/h |
| Auxiliary Hydraulic Oil Flow |
Approx. 54 L/min (Standard) |
| Overall Width (Standard Tyres) |
Approx. 1,400 mm |
| Overall Height (Cab Roof) |
Approx. 2,300 mm |
| Differential Lock |
100% Electric On-Demand Lock (Front &
Rear) |
