New Kubota SVL75-3 Compact Track Loader
Next-Generation Power, Vertical Lift Performance, Exceptional
All-Terrain Traction. The Kubota SVL75-3 represents the pinnacle of
compact track loader engineering, delivering unmatched breakout force, lifting
power, and operator comfort. Powered by a high-torque Stage V compliant 74.3 HP
Kubota diesel engine, this next-generation loader features an advanced vertical
lift arm design that provides maximum reach and dumping height for loading
high-sided trucks and hoppers. Built with an updated high-visibility cab,
intuitive 7-inch LCD touchscreen display, hydraulic quick coupler, and rugged
rubber tracks, the SVL75-3 is designed to conquer demanding construction,
landscaping, and agricultural site work.
74.3 HP Kubota Engine
- Stage V Compliant Power: High-torque Kubota diesel engine
offers exceptional pulling power and fuel efficiency.
- Auto Downshift: Automatically switches from high to low
travel speed when turning for smooth, continuous drive.
- Advanced Reversing Fan: Keeps the radiator clean and
prevents overheating in dusty, high-debris conditions.
Request a Quote

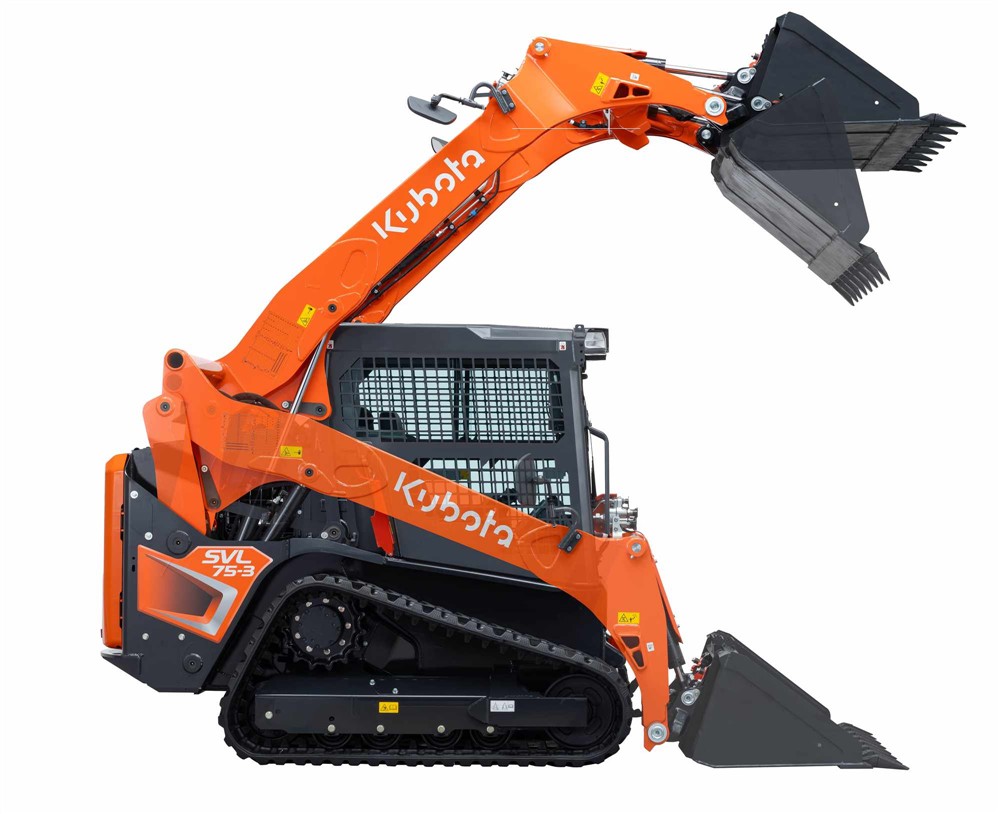

Vertical Lift Arm Reach
- Vertical Lift Path: Maximizes forward reach at full
height for effortless dumping into high-sided trailers.
- Outstanding Breakout Force: Powerful hydraulic system
delivers immense digging and bucket breakout capability.
- Hydraulic Quick Coupler: Switch attachments directly from
the cab seat with effortless push-button operation.
Sealed Cab & 7" Touchscreen
- Pressurized Dust-Free Cab: Sealed and pressurized cab
minimizes dust entry and keeps working noise exceptionally low.
- 7-Inch Colour LCD Panel: Displays key machine metrics,
integrated rear-view camera feeds, and hydraulic adjustments.
- Sliding Front Door: Roll-up front glass door allows easy
access regardless of loader arm position.
Rugged Rubber Track Drive
- Integrated Undercarriage: Welded, single-unit frame
design provides maximum structural longevity.
- Low Ground Pressure: Wide rubber tracks spread weight
evenly, protecting turf and maintaining soft-ground flotation.
- Dual-Speed Travel: Fast 2-speed travel gear reduces
non-productive transfer times across large sites.
Model Variations & Specifications
| MODEL |
DESCRIPTION & SPECIFICATIONS |
PRODUCT CODE |
| SVL75-3 CW |
Cabin, 400 mm Wide Crawler, Std. Auxiliaries (72.7 l/min), Mechanical
Quick Hitch |
V053921120 |
| SVL75-3 CFW |
Cabin, 400 mm Wide Crawler, High Flow Auxiliary (112.8 l/min),
Mechanical Quick Hitch |
V053923120 |
| SVL75-3 CHW |
Cabin, 400 mm Wide Crawler, Std. Auxiliaries (72.7 l/min), Hydraulic
Quick Hitch |
V053925120 |
| SVL75-3 CHFW |
Cabin, 400 mm Wide Crawler, High Flow Auxiliary (112.8 l/min),
Hydraulic Quick Hitch |
V053927120 |
Technical Specifications - Kubota SVL75-3
Compact Track Loader
| SPECIFICATION |
DETAILS |
| Rated Operating Capacity (35% Tipping) |
Approx. 1,129 kg (2,490 lbs) |
| Tipping Load |
Approx. 3,225 kg (7,112 lbs) |
| Engine Power Output |
74.3 HP / 55.4 kW @ 2,400 rpm |
| Engine Type |
Kubota 4-Cylinder Turbocharged Diesel (Stage V) |
| Lift Path Type |
Vertical Lift Path |
| Bucket Breakout Force |
Approx. 2,812 kgf (6,200 lbs) |
| Max. Hinge Pin Height |
Approx. 3,110 mm |
| Reach at Max. Height |
Approx. 983 mm |
| Travel Speed (Low / High) |
8.0 km/h / 12.0 km/h |
| Standard Auxiliary Flow |
72.7 L/min (High Flow 112.8 L/min Optional) |
| Operating Weight (Cab) |
Approx. 4,280 kg |
| Overall Width (Without Bucket) |
Approx. 1,675 mm |
| Overall Height (Cab Roof) |
Approx. 2,083 mm |
| Anti-Theft System |
Kubota Coded Key Immobilizer System Standard |
