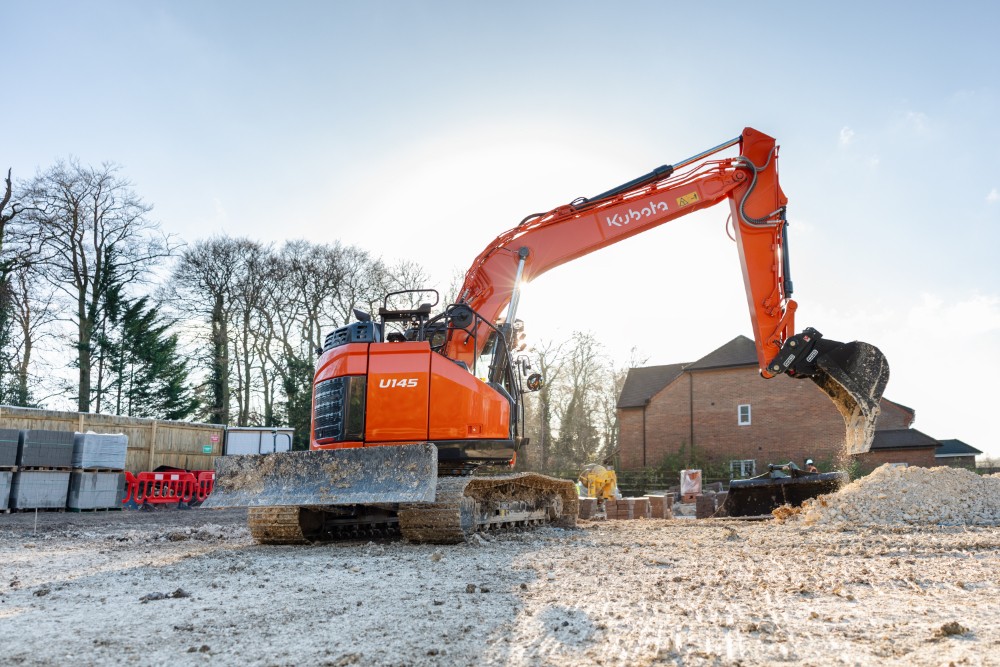

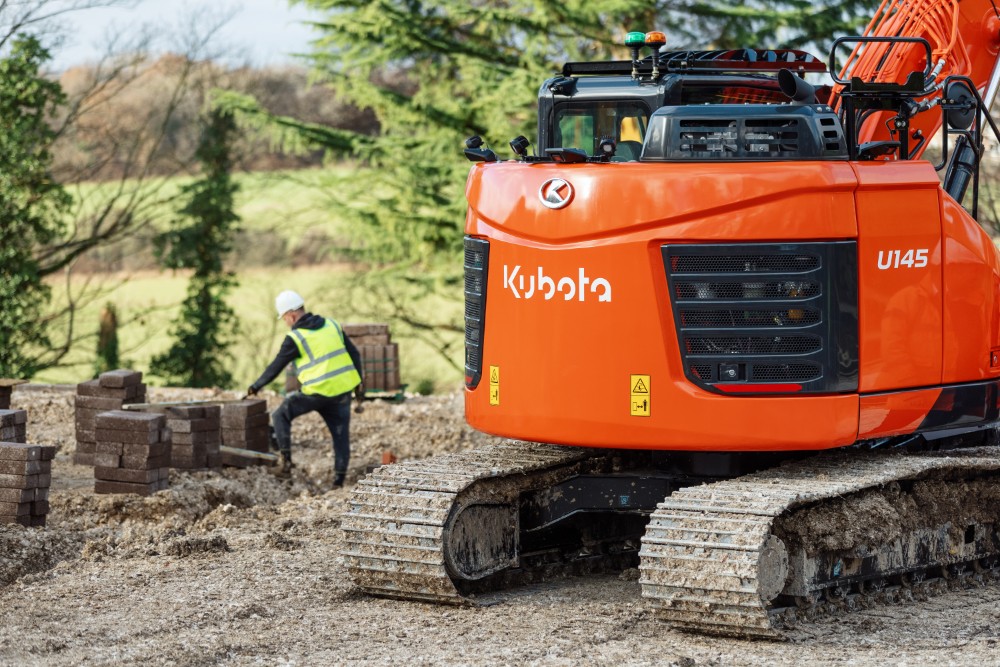

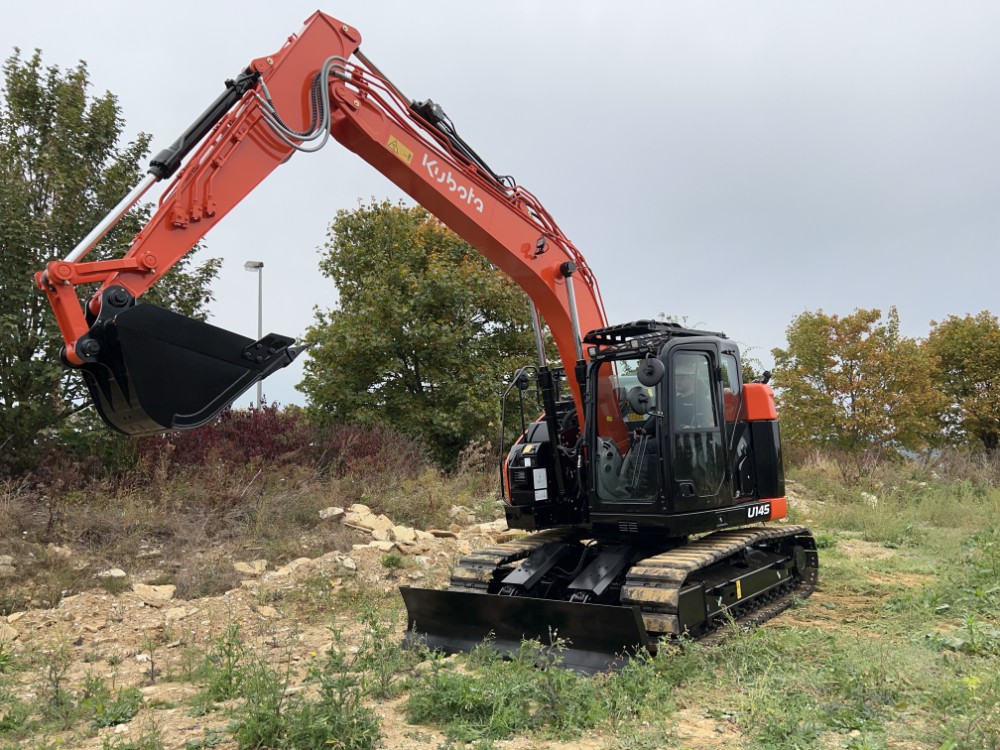

Kubota U145 14-Tonne Zero Tail Swing Excavator
Experience Unparalleled Performance with Kubota's Flagship 14-Tonne
Excavator. Designed for heavy-duty construction, civil engineering,
and restricted utility sites, the U145 combines optimized high-flow
load-sensing hydraulics with a zero-tail swing profile. Powered by an EU Stage
V compliant turbo diesel engine, it delivers exceptional breakout force,
superior all-terrain stability, and unmatched operator comfort in a tight-tail
package.
Advanced Performance Modes
- Three Working Modes: Switch between Super Power (SP),
Heavy (H), and Auto (A) modes to match workload requirements.
- Auto-Shift 2-Speed Travel: Smooth transition up to 5.6
km/h for efficient site repositioning.
- Zero Tail Swing: 360-degree swivel stability makes it
ideal for confined urban and roadside applications.
Request a Quote
Optimized Hydraulics
- Dual Auxiliary Circuits: Complete with Spool Stroke
Control (SSC) for precise multi-attachment operation.
- Boom Down Energy Save (BES): Automatically recycles
hydraulic flow to boost fuel efficiency during lowering.
- Power Save Control: Automatically reduces pump flow when
idle to minimize fuel waste.
Luxurious Cab & Comfort
- Heated Air-Suspension Seat: Fully adjustable with
reclining backrest and integrated climate controls.
- 7-Inch Widescreen Monitor: Crisp colour display for
machine diagnostics, flow tuning, and camera feeds.
- Pressurised Cabin: Excellent leg/head space with
automatic air conditioning and low noise levels.
Safety & Visibility
- 270-Degree Surround View: Multi-camera vision system
linked directly to the main cabin monitor.
- FOPS Level 2 Certified Guard: Robust top cab guard and
anti-drop valves on boom and arm cylinders.
- LED Work Lighting: Bright energy-efficient lighting
package complete with an integrated rain deflector.
Technical Specifications - Kubota U145 Excavator
| SPECIFICATION |
MONO BOOM DETAILS |
2-PIECE BOOM DETAILS |
| Machine Operating Weight |
Approx. 14,640 kg (with dozer) / 14,500 kg (without) |
Approx. 15,621 kg |
| Engine Power (ISO 14396) |
106.7 PS (78.5 kW) @ 2000 rpm |
106.7 PS (78.5 kW) @ 2000 rpm |
| Emissions Standard |
EU Stage V 4-Cylinder Diesel |
EU Stage V 4-Cylinder Diesel |
| Maximum Digging Depth |
5,510 mm |
5,310 mm |
| Maximum Reach at Ground Level |
9,340 mm |
9,470 mm |
| Maximum Digging Force (Bucket) |
90 kN |
90 kN |
| Travel Speed (Low / High) |
3.4 km/h / 5.6 km/h (Auto-Shift) |
3.4 km/h / 5.6 km/h (Auto-Shift) |
| Auxiliary Hydraulic Flow (AUX 1 / AUX 2) |
126 L/min / 60.5 L/min |
126 L/min / 60.5 L/min |
| Tail Swing Type |
Zero Tail Swing |
Zero Tail Swing |
| Cab & Safety Rating |
ROPS / FOPS Level 2 Certified |
ROPS / FOPS Level 2 Certified |
Authorized Kubota Construction
Equipment Dealer
Stubbings Bros:
Providing elite-level plant support, technical service, and genuine parts
across the Isle of Wight.
Contact Our Plant Sales Team
Manufacturer Brochure (Flip Book)
Loading Brochure Pages...
