New Kubota U27-4 GL Cabin Midi Excavator
Compact Powerhouse Agility: True Zero Tail Swing Performance with
Extended Digging Reach. The Kubota U27-4 GL stands out as one of the
most versatile and hard-working excavators in the 2.7-tonne class,
precision-engineered to master tightly confined urban jobsites. Featuring a true
**Zero Tail Swing (ZTS)** profile, the chassis superstructure rotates fully
within the footprint of its high-traction **Rubber Tracks**, completely
preventing costly rear-impact damage to adjacent walls or fences. This premium
**GL** specification comes fully equipped with a spacious, deluxe **Full Cabin**
featuring an integrated cabin heater and intuitive, low-effort pilot controls.
Outfitted with a factory-extended **Long Arm** variant on a rugged fixed
undercarriage, it delivers exceptional deep digging depth and lifting height
limits. The high-capacity **Single-Line Auxiliary Hydraulic System (AUX1)** is
seamlessly integrated onto a proportional control switch on the right joystick,
making it highly responsive when running hydraulic breakers, augers, and compact
attachments.

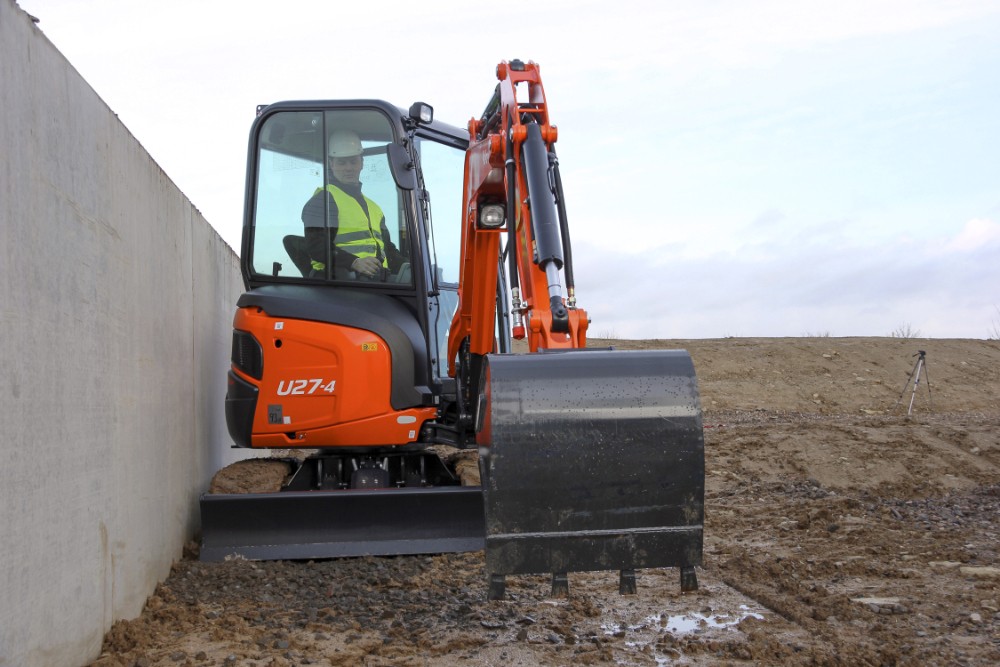

True Zero Tail Swing
- Confined Site Mastery: The machine tail remains flush
inside the width of the tracks, ensuring worry-free 360° rotation in tight
alleys.
- Safe Operation Focus: Eradicates rear-end counterweight
blind-spot impacts with obstacles, properties, or personnel.
- Impressive Stability: Intelligent component packaging
guarantees excellent lifting and balancing leverage over the side.
Request a Quote
Deluxe Full Cabin
- Spacious Ergonomic Design: Offers class-leading cabin
entry width, generous footwell space, and a premium suspension seat.
- All-Weather Climate: Powerful multi-speed integrated
heater keeps the operator comfortable and the front glass fully
defrosted.
- Low-Fatigue Workplace: The ROPS/OPG cabin sits securely
on vibration-absorbing rubber mounts to dampen operational
shock.
Proportional AUX1 Line
- Single-Line Attachment Flow: Heavy-duty auxiliary
plumbing routes continuous oil flow down the boom for powerful attachment
drive.
- Thumb-Controlled Lever: Proportional slide switch built
directly into the right-hand joystick allows for precise hydraulic
feedback.
- Digital Flow Fine-Tuning: Oil flow settings can be set up
easily via the digital panel to match specific attachment
requirements.
Long Arm & Fixed Base
- Extended Working Radius: Factory-installed long arm
configuration unlocks deeper digging reaches and high dumping height
thresholds.
- Surface-Safe Rubber Tracks: High-grip rubber tracks cross
delicate concrete, asphalt, or lawns without scoring.
- Kubota Anti-Theft Protection: Standard equipment includes
Kubota’s Thatcham-approved electronically coded master key
immobilizer.
Technical Specifications - Kubota U27-4 GL
(Long Arm Edition)
| SPECIFICATION |
DETAILS |
| Operating Weight |
2,665 kg |
| Engine Model |
Kubota D1105-E4-BH-2 (Stage V Liquid-Cooled Diesel Engine) |
| Engine Output |
15.6 kW / 21.2 PS @ 2400 rpm |
| Tail Swing Profile |
True Zero Tail Swing (ZTS) |
| Cabin Specification |
Full Cab with Integrated Heater (ROPS / OPG Level 1) |
| Track Configuration |
High-Performance Premium Rubber Tracks |
| Arm Configuration |
Factory-Extended Long Arm Variant |
| Hydraulic Piping |
Single-Line Auxiliary (AUX1) with Proportional Joystick Slider |
| Max. Digging Depth |
2,820 mm |
| Max. Digging Reach |
4,740 mm |
| Max. Dumping Height |
3,100 mm |
| Undercarriage Type |
Heavy-Duty Fixed Track Frame |
| Anti-Theft Protection |
Kubota Thatcham-Approved Coded Key Immobilizer |
| Bucket Breakout Force |
21.0 kN (2,140 kgf) |
| Model Code |
Configuration / Specification |
Product Code |
| U27-4 HGL |
Canopy, Rubber Tracks, Fixed Undercarriage, Long Arm |
RGH1613250 |
| U27-4 HGL Hi |
Canopy, Rubber Tracks, Fixed Undercarriage, Long Arm, Hi-Spec - Proportional Auxiliary 1&2, Auto Shift Travel, Hand Control Boom Swing |
RGH1713250 |
| U27-4 GL |
Cabin, Rubber Tracks, Fixed Undercarriage, Long Arm |
RGH1623250 |
| U27-4 GL Hi |
Cabin, Rubber Tracks, Fixed Undercarriage, Long Arm, Hi-Spec - Proportional Auxiliary 1&2, Auto Shift Travel, Hand Control Boom Swing |
RGH1723250 |
