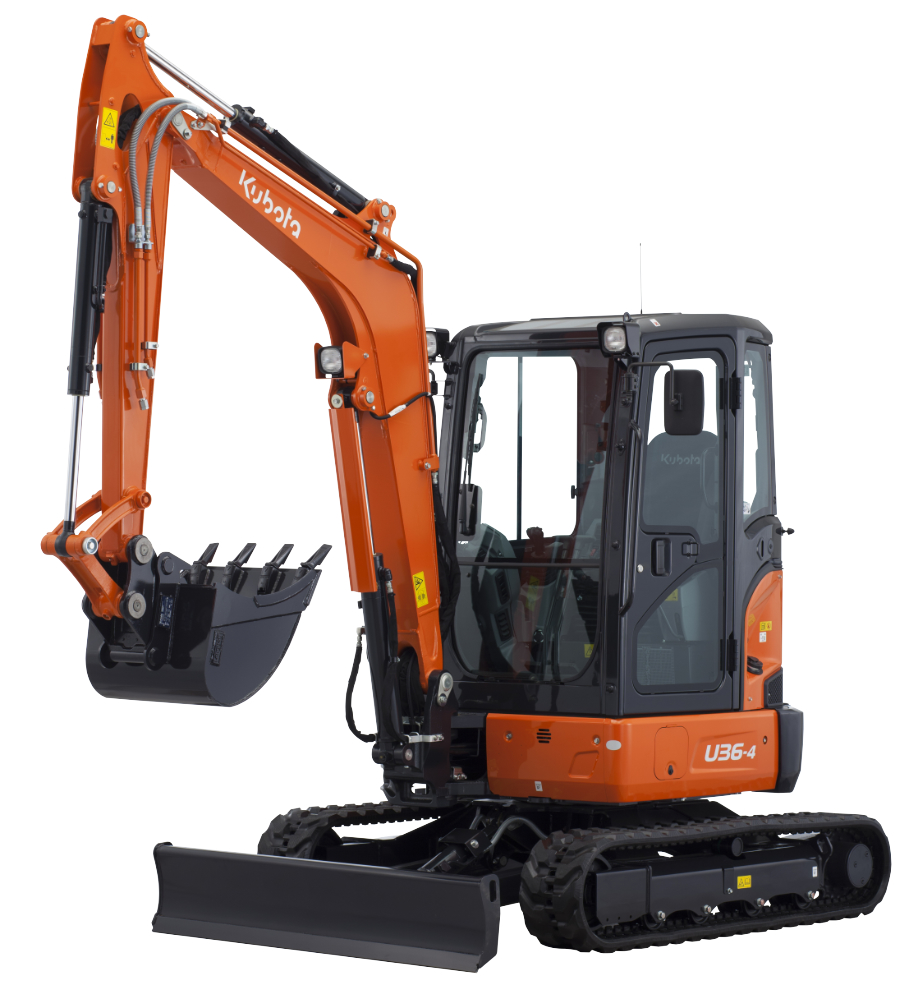

New Kubota U36-4 GL Cabin Midi Excavator
Elite 3.5-Tonne Performance: Zero Tail Swing Agility with Superior Digging Reach. The Kubota U36-4 GL is the definitive choice for professionals demanding heavy-duty productivity within tight, confined workspaces. Featuring a **Zero Tail Swing (ZTS)** profile, the chassis rotates smoothly within the width of its high-performance **Rubber Tracks**, completely removing the risk of rear-impact damage against walls or fencing. This premium **GL** specification comes fully equipped with a spacious, deluxe **Full Cabin** that features an integrated heater and ergonomic controls. Engineered with an factory-extended **Long Arm** on a rigid fixed undercarriage, it offers impressive deep-digging limits and loading heights without compromising stability. Fitted with a high-capacity **Single-Line Auxiliary Hydraulic System (AUX1)** controlled proportionally via the right-hand joystick, the U36-4 GL easily runs heavy breakers, augers, and tilt-rotators on any urban site.
True Zero Tail Swing
- Confined Space Mastery: The machine tail stays entirely within the track width, allowing safe rotation flush against walls.
- Enhanced Jobsite Safety: Eliminates accidental rear counterweight impacts with buildings, trees, or nearby ground workers.
- Excellent Stability: Carefully balanced weight distribution provides standard-setting lifting power over the side.
Request a Quote

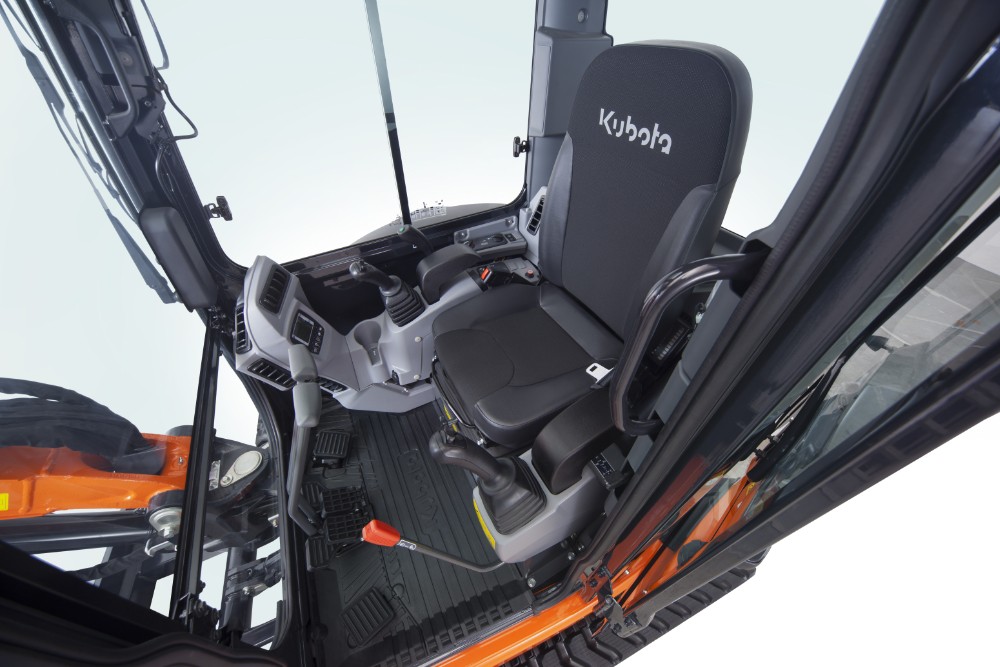

Deluxe Full Cabin
- Spacious Deluxe Interior: Delivers class-leading entry width, abundant legroom, and a luxury weight-adjustable seat.
- All-Weather Heating: Powerful multi-speed cab heater keeps operators warm and clear-vision windows demisted.
- Low Noise & Vibration: Rollover Protective Structure (ROPS) cab is rubber-mounted to minimize operator fatigue.
Proportional AUX1 Line
- Single-Line Auxiliary: Designed to supply consistent high-flow hydraulic oil straight to attachment systems.
- Precise Thumb Control: Proportional slide switch built directly into the right joystick allows fine attachment adjustments.
- Flow Adjustability: Oil flow rates can be easily preset via the digital instrument panel to suit different tools.
Long Arm & Fixed Tracks
- Extended Deep Reach: The factory long-arm configuration unlocks superior digging depth and dump clearances.
- Durable Rubber Tracks: High-grip, low-ground-pressure tracks allow smooth travel over concrete and grass without marking.
- Kubota Anti-Theft System: Secured via a unique electronically coded key system to protect your assets on site.
Technical Specifications - Kubota U36-4 GL (Long Arm Edition)
| SPECIFICATION |
DETAILS |
| Operating Weight | 3,755 kg |
| Engine Model | Kubota V1505-E4-BH-2 (Stage V Direct Injection Diesel) |
| Engine Output | 17.8 kW / 24.2 PS @ 2300 rpm |
| Tail Swing Profile | True Zero Tail Swing (ZTS) |
| Cabin Specification | Full Cab with Integrated Heater (ROPS / OPG Level 1) |
| Track Configuration | High-Performance Rubber Tracks |
| Arm Length | Extended Long Arm Variant |
| Hydraulic Piping | Single-Line Auxiliary (AUX1) with Proportional Joystick Slider |
| Max. Digging Depth | 3,410 mm |
| Max. Digging Reach | 5,450 mm |
| Max. Dumping Height | 3,640 mm |
| Undercarriage Type | Heavy-Duty Fixed Track Frame |
| Anti-Theft Protection | Kubota Thatcham-Approved Coded Key Immobilizer |
| Bucket Digging Force | 29.5 kN (3,005 kgf) |
