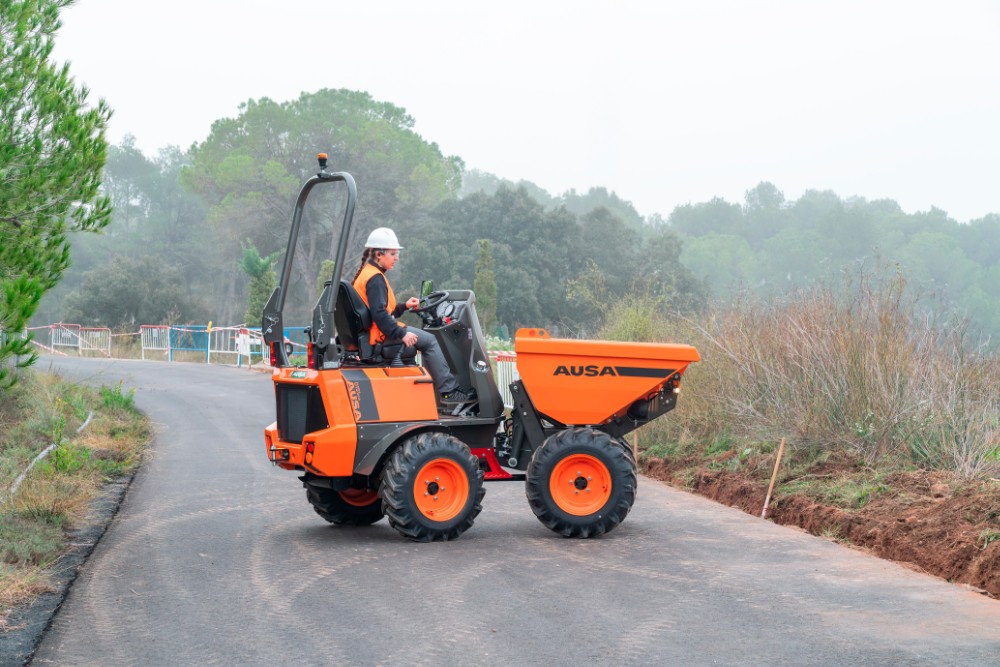

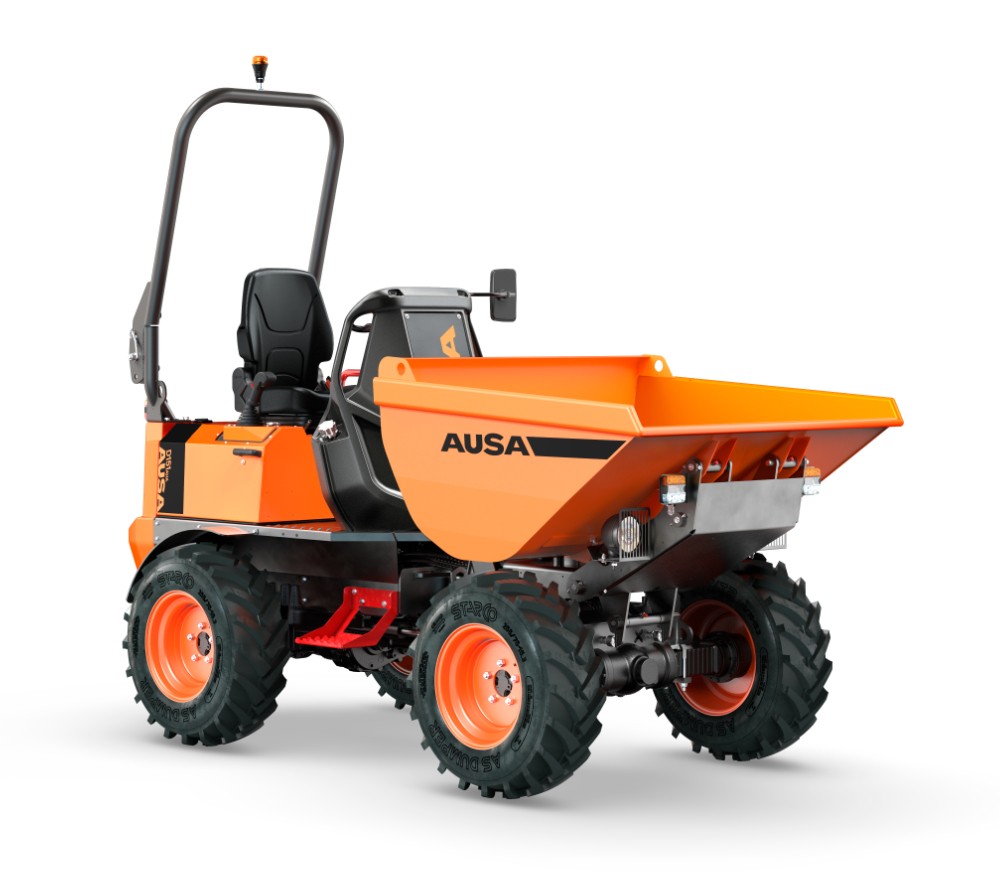

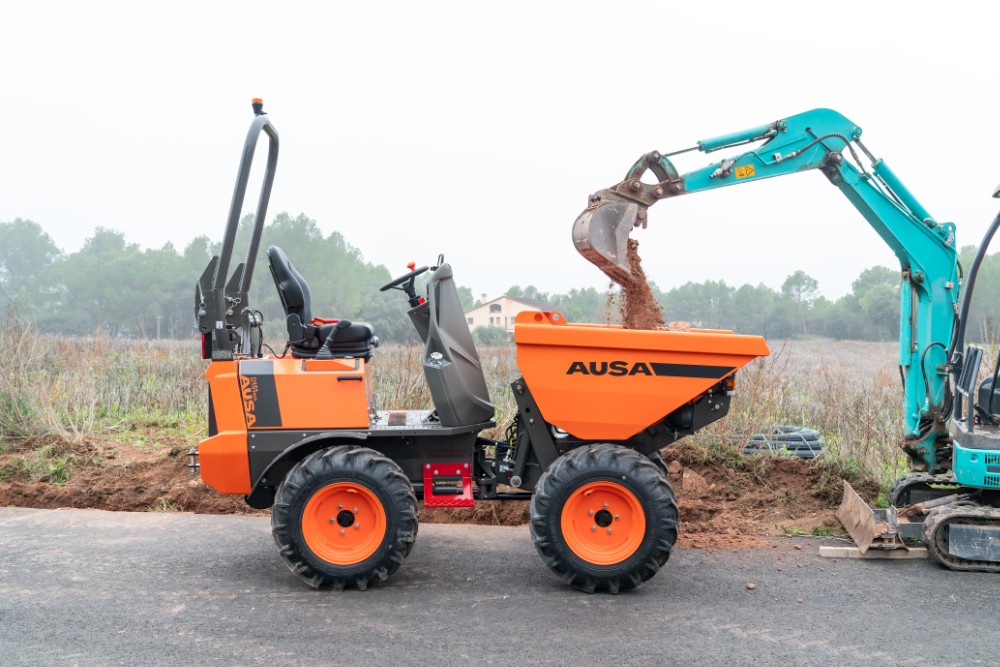

New AUSA D151AHA High-Tip Articulated Dumper
(1.5T)
Elevated Unloading Precision, Agile Articulated Chassis, 1,500 kg
Capacity. The AUSA D151AHA High-Tip Dumper offers the perfect
combination of payload capacity and elevated discharge capabilities for
confined building sites and landscaping projects. Featuring a hydraulic
scissor-lift high-tipping mechanism, it easily elevates loads up to 1.7 metres
for seamless unloading directly into waste skips, bins, or trailers. Built on
an advanced articulated chassis with permanent 4WD hydrostatic drive and a
Stage V Kubota diesel engine, the D151AHA provides unmatched traction,
stability, and maneuverability across demanding terrains.

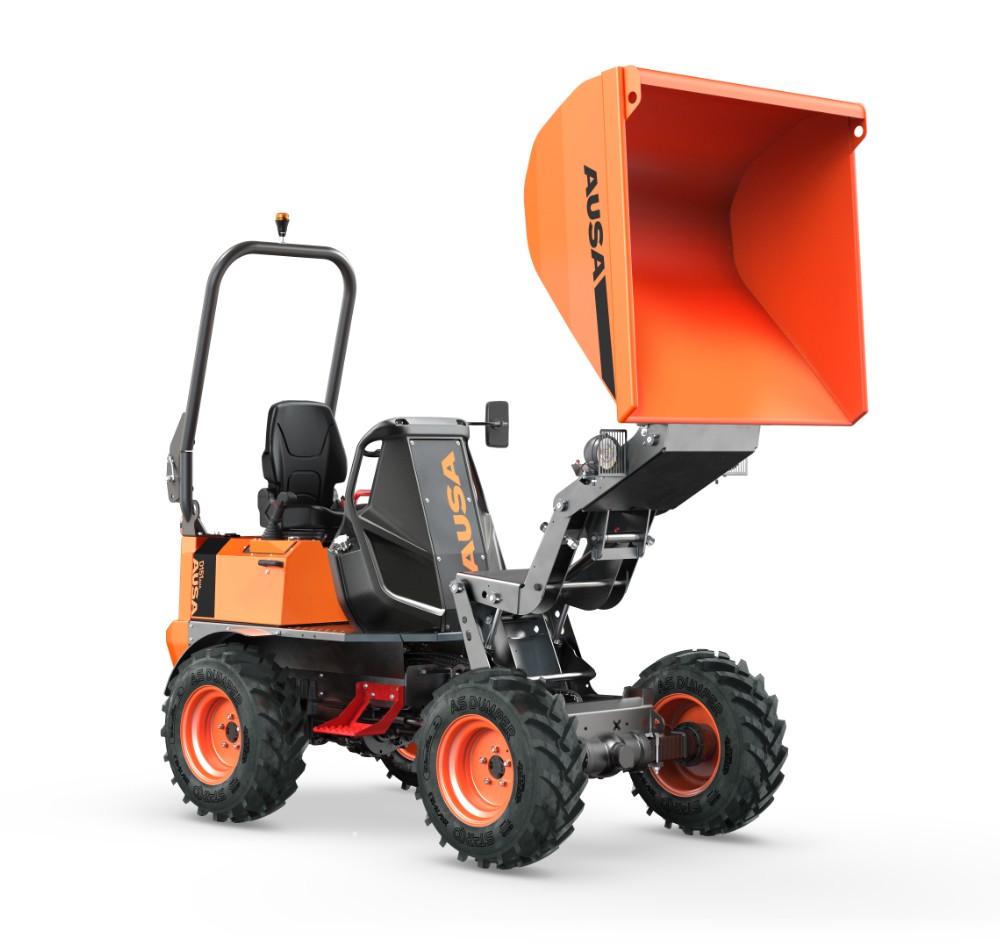

1.7m High-Tip System

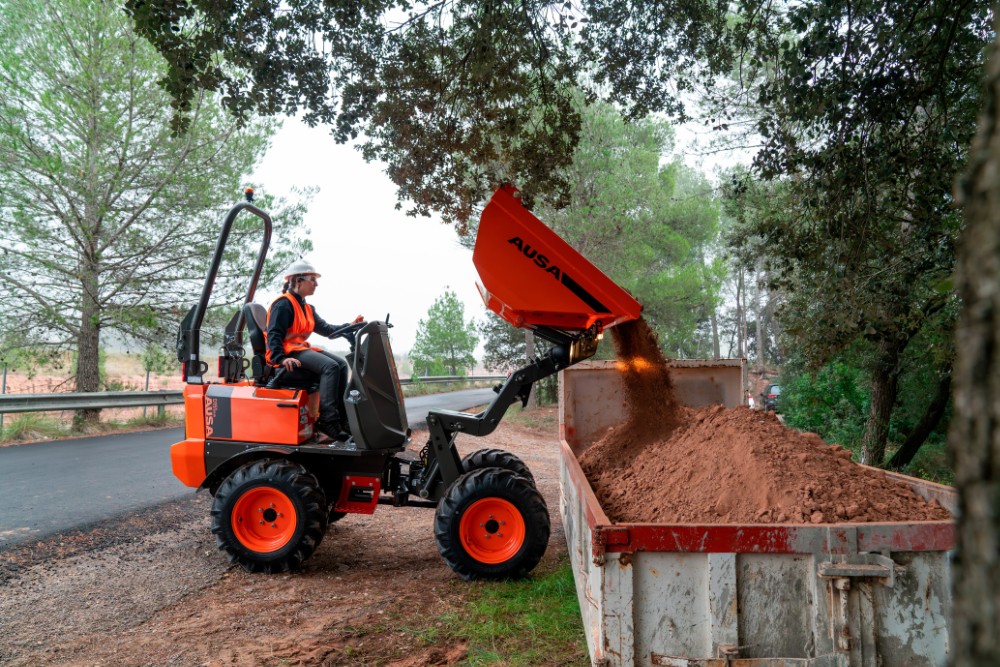

- Elevated Unloading: Scissor-action hydraulic system lifts
the skip up to 1.70 m high to discharge directly into waste skips and
trucks.
- 1.5-Tonne Payload: Rated payload capacity of 1,500 kg to
efficiently move bulk earth, rubble, and aggregates.

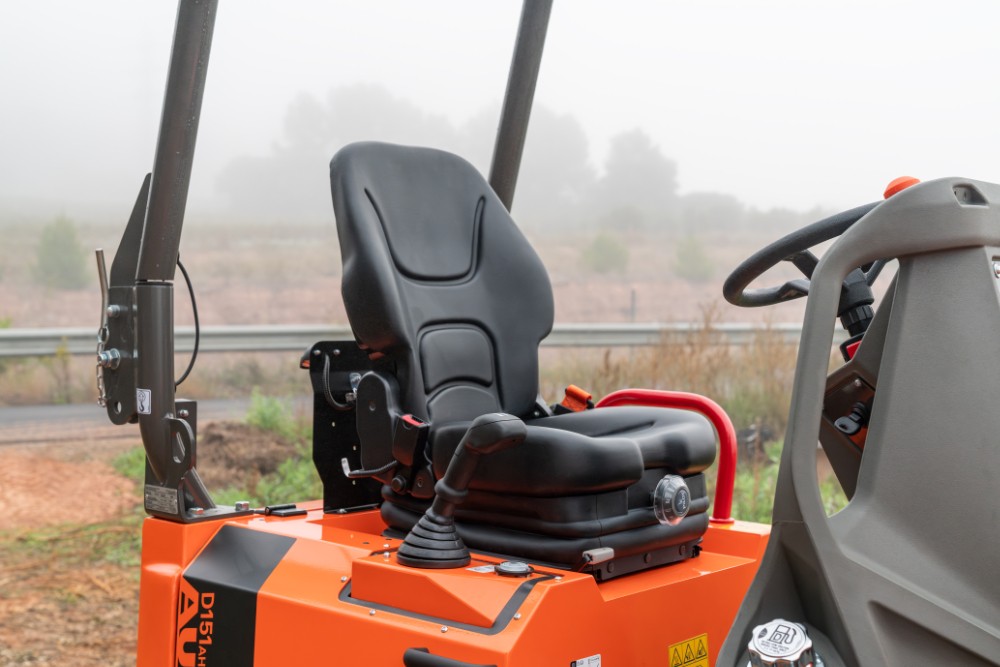

- Precise Control: Intuitive single-joystick operation
seamlessly manages skip elevation, tipping, and drive direction.
Request a Quote
Agile Compact Chassis
- Articulated Steering: Exceptional turning radius allows
effortless navigation through narrow building site gaps and tight residential
areas.
- Narrow Profile: Compact transport width under 1.5 metres
lets it operate where larger dumpers simply cannot fit.
- Stable Load Distribution: Engineered weight placement
keeps the chassis fully grounded and stable during high-tip
operations.
Kubota Stage V Power
- Efficient Diesel Engine: Stage V compliant Kubota D1105
3-cylinder diesel delivering low emissions and fuel consumption.
- Permanent 4WD: Hydrostatic 4-wheel drive system
guarantees maximum traction on muddy ground and steep inclines.
- Automatic Retention Brake: Negative parking brake
automatically engages when the engine stops for absolute safety on
slopes.
Safety & Visibility
- ROPS Protection Arch: Folding ROPS safety frame allows
passage under low obstacles and facilitates safe storage.
- Seat Sensor & Belt: Built-in presence sensors prevent
unit operation without safety seatbelt engagement.
- Road Lighting Kit: Standard front and rear road lights
for safe transit across public roads and site paths.
Model Variations & Configurations
| MODEL |
DESCRIPTION & SPECIFICATIONS |
PRODUCT CODE |
| AUSA D151AHA |
1.5-Tonne High-Tip Skip (1.7m dump height), Hydrostatic 4WD, ROPS
Arch, Road Light Kit |
W20AU0151A |
| AUSA D151AHG |
1.5-Tonne Swivel Skip (180° rotation), Hydrostatic 4WD, ROPS Arch,
Road Light Kit |
W20AU0151G |
Technical Specifications - AUSA D151AHA
| SPECIFICATION |
DETAILS |
| Payload Capacity |
1,500 kg |
| Unloading Mechanism |
Hydraulic High-Tip (Elevating Scissor Action) |
| Max. Tipping Height |
Approx. 1,700 mm |
| Engine Model |
Kubota D1105-E4B (Stage V) |
| Engine Output |
15.4 kW / 20.6 HP @ 2,400 rpm |
| Transmission Type |
Hydrostatic Permanent 4WD |
| Max. Travel Speed |
14 - 16 km/h |
| Heaped Skip Capacity |
Approx. 830 - 900 Litres |
| Overall Transport Width |
1,480 mm |
| Overall Transport Length |
3,300 mm |
| Unladen Machine Weight |
1,510 kg |
Authorized AUSA Dealer
Stubbings Bros:
Supplying quality site dumpers, genuine spare parts, and dedicated service
across the Isle of Wight.
Contact Our Sales Team
