New AUSA D151AHG Swivel Skip Articulated
Dumper
Compact 1.5-Tonne Payload, 180° Swivel Skip Unloading, All-Terrain
Performance. The AUSA D151AHG is an extremely agile and versatile site
dumper engineered specifically for small construction sites, civil works, and
municipal projects. Powered by a robust Stage V Kubota engine and equipped with
permanent 4WD hydrostatic transmission, the D151AHG carries up to 1,500 kg with

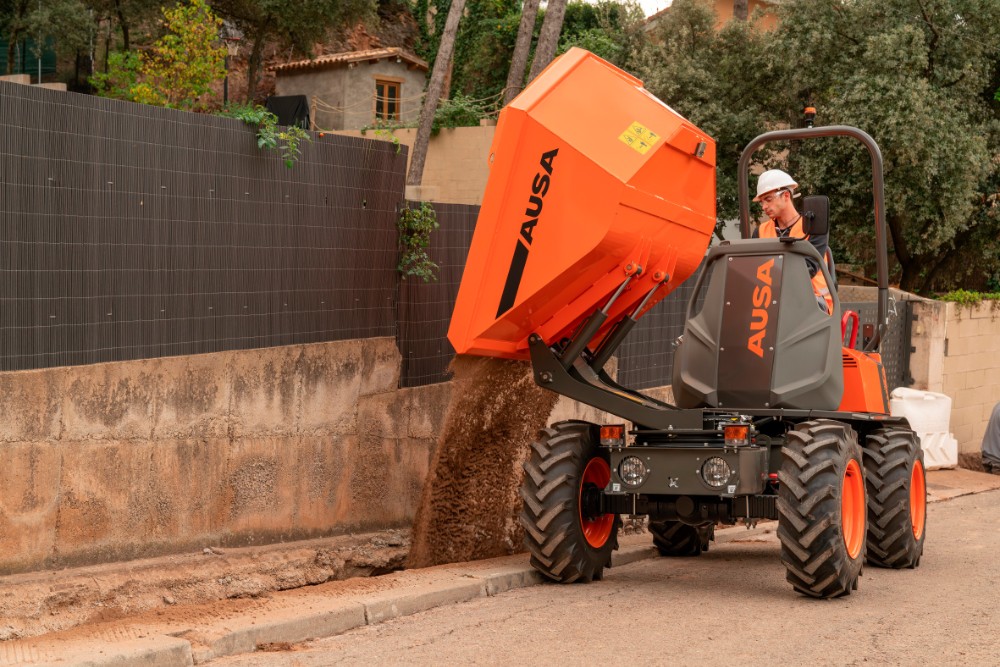

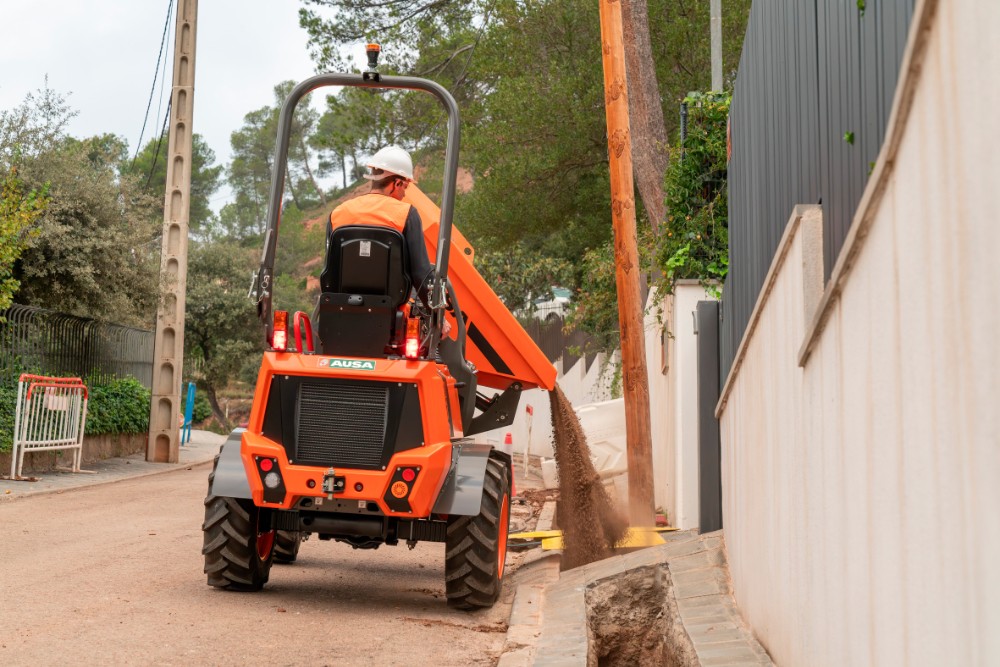

total stability across uneven ground. Featuring a 180-degree hydraulically
rotating swivel skip, operators can quickly and accurately unload materials
into side ditches, narrow trenches, and tight spaces without awkward machine
repositioning.
180° Rotating Swivel Skip
- Side-Dumping Agility: Hydraulically rotates 180 degrees
for precise lateral dumping along trenches and side ditches.
- 1.5-Tonne Payload: Handles high-density materials like
gravel, dirt, and concrete with ease.
- Smooth Joystick Control: Single multi-function joystick
controls travel, steering, and skip functions effortlessly.
Request a Quote
Agile Compact Chassis
- Articulated Steering: Exceptional turning radius allows
effortless navigation through narrow building site gaps.
- Narrow Width: Transport width of under 1.5 metres lets it
operate where larger dumpers cannot fit.
- Tilting Driver Station: Easy-access tilting bonnet and
operator seat for simple routine maintenance access.
Kubota Stage V Power
- Efficient Diesel Engine: Stage V compliant Kubota D1105
3-cylinder diesel delivering low emissions and fuel consumption.
- Permanent 4WD: Hydrostatic 4-wheel drive system ensures
high traction on muddy or sloping terrain.
- Automatic Retention Brake: Negative parking brake
automatically engages when the engine stops for safety on
inclines.
Safety & Visibility
- ROPS Safety Structure: Folding ROPS protection arch with
integrated beacon bracket.
- Seat Sensor & Belt: Built-in presence sensors prevent
unit operation without safety seatbelt engagement.
- Road Lighting Kit: Standard front and rear road lights
for safe transit across public roads and site paths.
Model Variations & Configurations
| MODEL |
DESCRIPTION & SPECIFICATIONS |
PRODUCT CODE |
| AUSA D151AHG |
1.5-Tonne Swivel Skip, Hydrostatic 4WD, ROPS Arch, Road Light Kit |
W20AU0151G |
| AUSA D151AHA |
1.5-Tonne High-Tip Skip, Hydrostatic 4WD, ROPS Arch, Road Light Kit |
W20AU0151A |
Technical Specifications - AUSA D151AHG
| SPECIFICATION |
DETAILS |
| Payload Capacity |
1,500 kg |
| Unloading System |
Hydraulic 180° Swivel Skip |
| Engine Model |
Kubota D1105-E4B (Stage V) |
| Engine Output |
15.4 kW / 20.6 HP @ 2,400 rpm |
| Transmission |
Hydrostatic Permanent 4WD |
| Max. Speed |
14 - 16 km/h |
| Heaped Skip Capacity |
Approx. 840–900 Litres |
| Transport Width |
1,480 mm |
| Transport Length |
3,300 mm |
| Unladen Weight |
1,510 kg |
| External Turning Radius |
3,260 mm |
Authorized AUSA Dealer
Stubbings Bros:
Supplying quality site dumpers, genuine spare parts, and dedicated service
across the Isle of Wight.
