Kubota KC70-HD-4 Tracked Dumper
Powerful High-Tip Performance. The Kubota KC70-HD-4 is a
diesel-powered dumper engineered for durability and efficiency. This model
features a high-tip function on a fixed undercarriage, making it ideal for
standard job site tasks where material needs to be discharged into skips or over
obstacles with precision and speed.
Fixed Undercarriage
- Stable Foundation: Robust fixed carriage width of 758mm
for reliable operation.

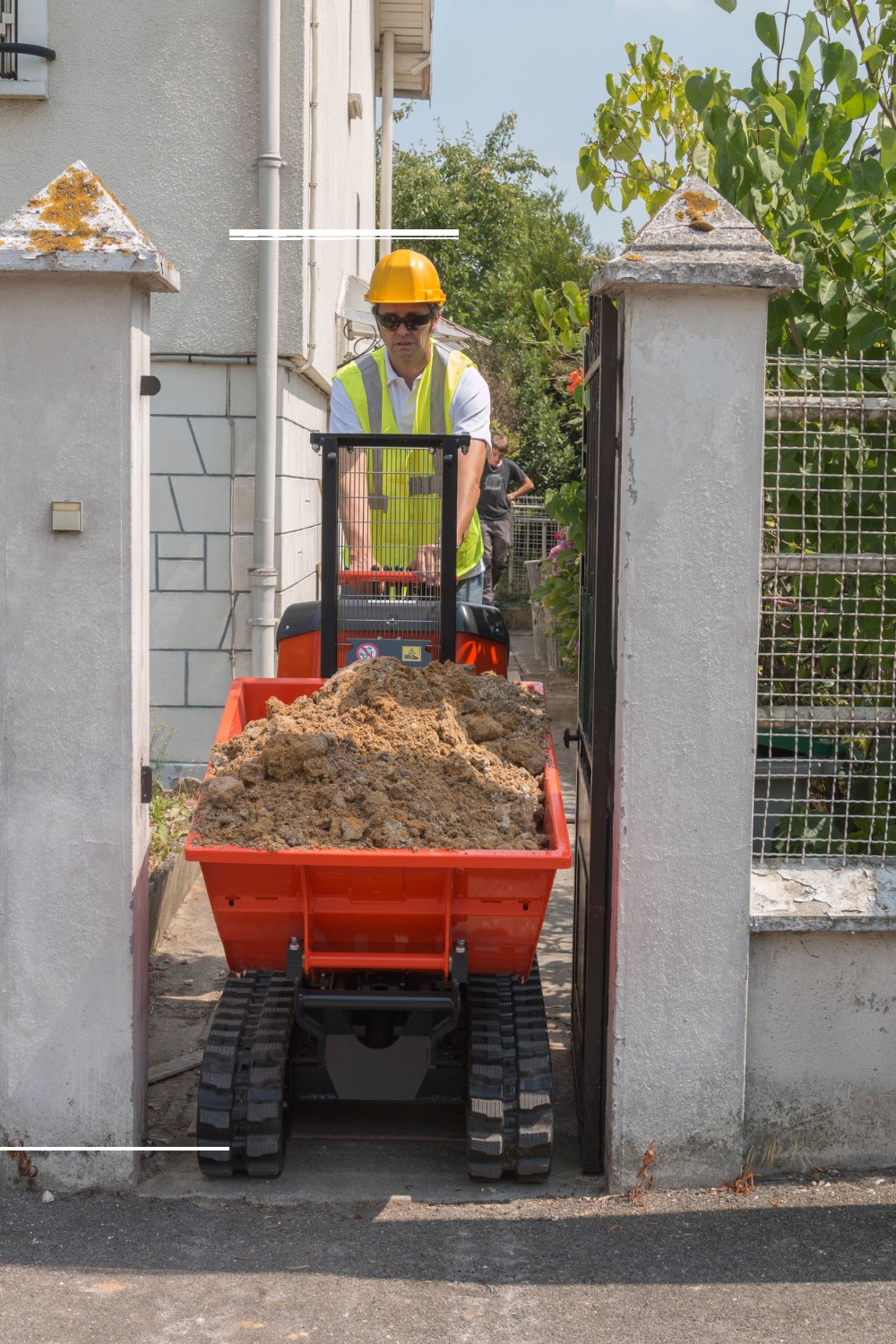

- Compact Profile: Narrow enough to navigate standard
doorways and garden gates.
- Tracked Traction: Heavy-duty tracks provide superior grip
on uneven or soft terrain.
- Low Maintenance: Simplified design ensures high
reliability and lower service costs.

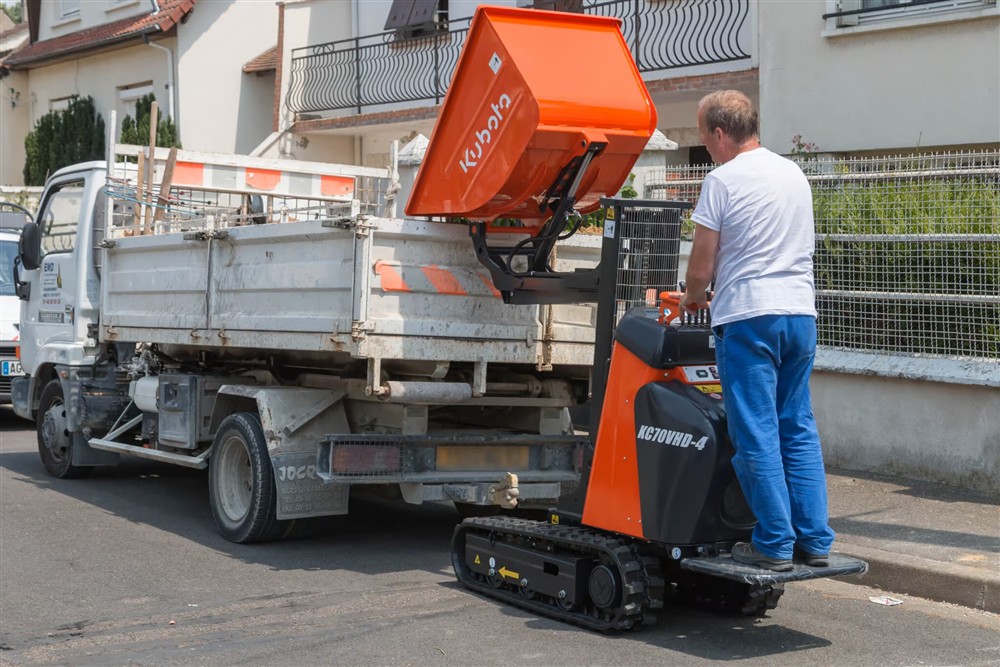

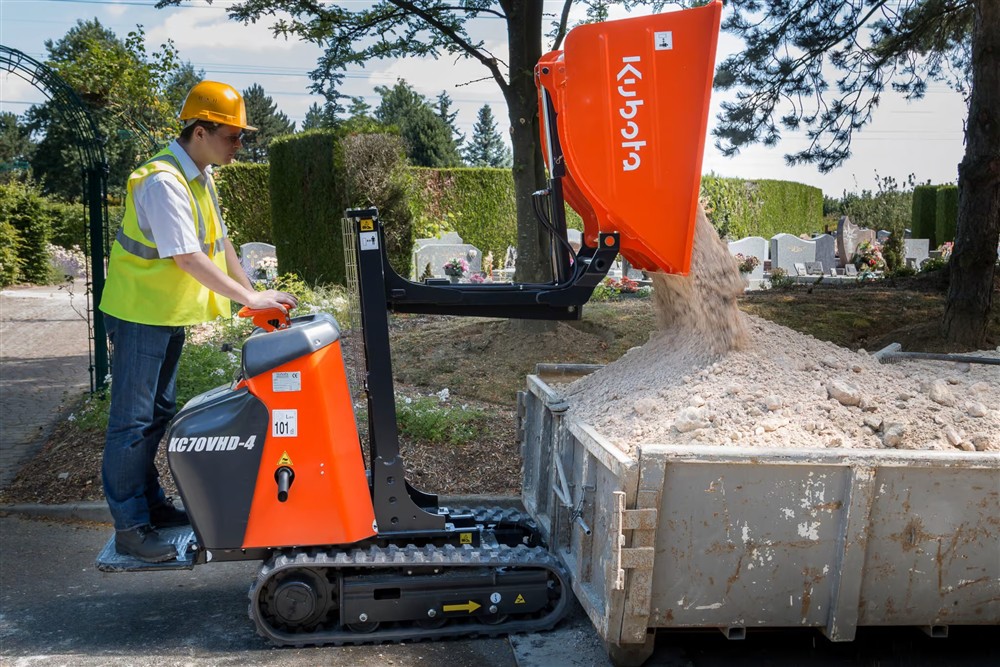

High-Tip Capability
- High Discharge: Telescopic tipping mechanism for easy
loading into skips.
- Powerful Engine: Equipped with the reliable Kubota OC95
diesel engine.
- Tipping Angle: Fast 88° dumping angle for efficient
material discharge.
- Load Capacity: Safely transport and tip up to 550kg of
material.
Payment & Shipping
- Secure Checkout: Easy and safe payments via PayPal.
- Business Finance: Competitive finance options through
Stubbings Bros.
- Local Delivery: Expert setup and delivery across the Isle
of Wight.
- Manufacturer Support: Full Kubota warranty and genuine
parts backup.
Technical Specifications
| Feature |
KC70-HD-4 Specification |
| Fuel Type |
Diesel |
| Max Loading Capacity |
550 kg (High-Tip) |
| Machine Weight |
620 kg |
| Overall Width |
758 mm (Fixed) |
| Transport Height |
1625 mm |
| Power (hp) |
9.4 hp |
| Max Speed |
2.2 / 3.3 km/h |
SKU:
.NW20CK01588
