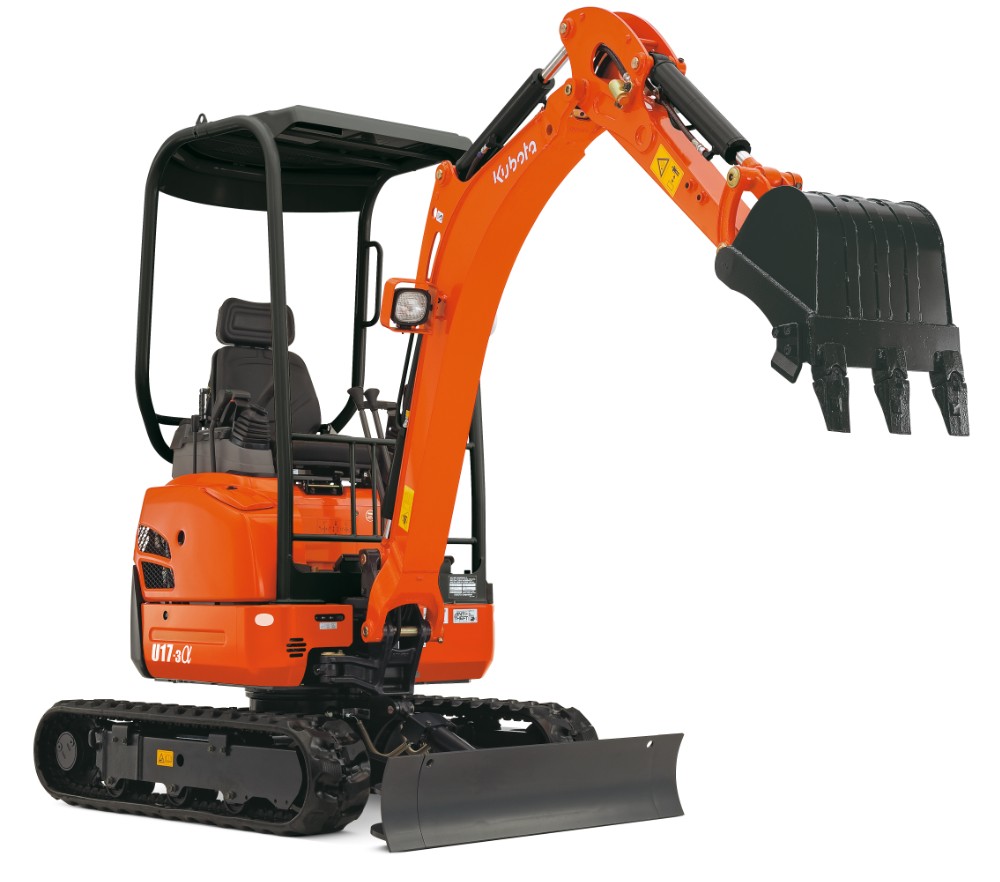

New Kubota U17-3a VHG F1 Mini Excavator
Unmatched Compact Versatility & Zero Tail Swing. The
Kubota 1.7-tonne mini excavator is the ultimate choice for tough jobs in
ultra-confined spaces. Featuring a hydraulic **Variable Track Gauge (VHG)**,
the undercarriage retracts down to just 990mm to clear narrow garden gates or
doorways, and expands out to 1,240mm for absolute stability when digging.
Boasting a true zero tail swing design, the chassis rotates smoothly within the
width of its tracks, eliminating rear impact risks against walls or fences.
Equipped with single-line auxiliary hydraulics to run breakers and attachments
efficiently, alongside a robust canopy frame (F1/ROPS), this plant staple
delivers heavy-duty excavation performance with nimble, precise
control.
Ultra-Compact Design
- Variable Track Gauge: Hydraulically scales from 990mm to
1,240mm in seconds.
- Zero Tail Swing: Rear counterweight stays within track
footprint for tight spaces.
- Folding Dozer Blade: Quick-fold extension pins allow easy
track-width matching.
- Protected Hoses: Boom and bucket hydraulic cylinders are
routed safely to avoid site damage.
Request
a Demo
Commercial Procurement
- Kubota Anti-Theft: Fitted with the industry-renowned
electronic coded key system.
- Local Support: Complete handover, maintenance, and
warranty from Stubbings Bros.
- Attachments: Full line of buckets, quick-hitches, and
augers available in stock.
Performance Power
- Kubota E-TVCS Engine: Renowned 3-cylinder diesel delivers
maximum torque and low vibration.
- Auxiliary Hydraulics: Single-line piping ready to power
breakers, augers, and compactors.
- Powerful Forces: Exceptional bucket breakout force
handles heavy clay and root systems easily.
- Dual-Speed Travel: Switchable tracking speeds for faster
repositioning across open sites.
Safety & Control
- F1 ROPS/TOPS Canopy: High-visibility open workspace
meeting all legal safety standards.
- Pilot Controls: Ergonomic wrist-rest joysticks provide
smooth, fatigue-free hydraulic operation.
- Engine Start Safety: Hydraulic lockout lever prevents
accidental movement on start-up.
- Isle of Wight Delivery: Fully prepped, fueled, and tested
by our on-site workshop team.
Technical Specifications - Kubota U17-3a
VHG
| SPECIFICATION |
DETAILS |
| Operating Weight |
1,650 kg |
| Engine Model |
Kubota D902-E3 (Stage V Compliant) |
| Engine Output |
11.8 kW / 16.0 HP @ 2300 rpm |
| Track Width Range |
990 mm to 1,240 mm (Hydraulic Adjust) |
| Max. Digging Depth |
2,310 mm |
| Max. Digging Reach |
3,840 mm |
| Auxiliary Hydraulic Flow |
27.7 L/min (Single Line) |
| Tail Swing Type |
Zero Tail Swing |
