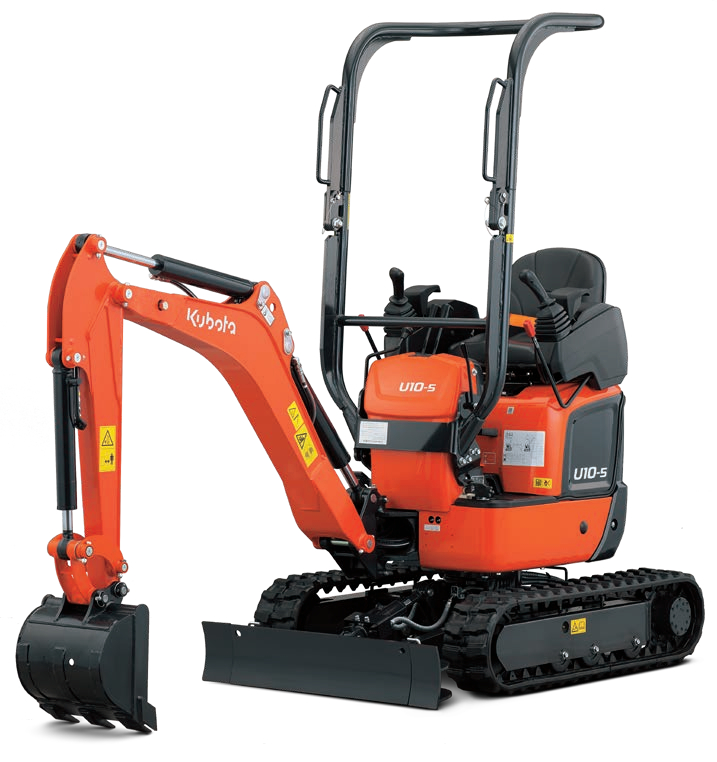

New Kubota U10-5 Micro Excavator (1
Tonne)
Ultra-Compact Zero Tail Swing, Foldable ROPS, Exceptional Digging
Performance. The Kubota U10-5 sets the benchmark for compact micro
excavators, designed specifically to access tight domestic passageways,
doorways, and restricted inner-city job sites. Powered by a Stage V compliant
10.3 HP Kubota diesel engine, the U10-5 combines Zero Tail Swing with side-lever
hydraulic controls for maximum precision and operator comfort. Featuring a

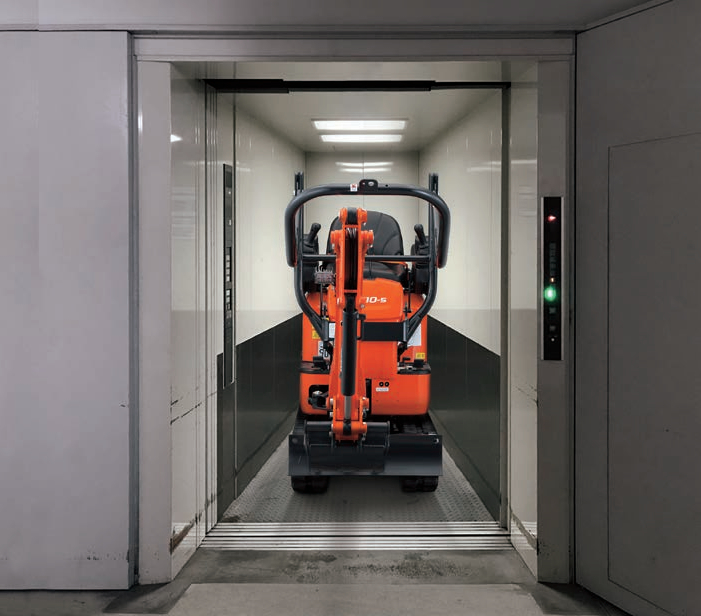

variable hydraulic track frame that retracts down to just 750 mm and a foldable
ROPS safety frame, this 1-tonne micro excavator passes effortlessly through
standard interior doors before expanding for superior digging
stability.
Kubota Stage V Engine
- Stage V Clean Diesel: Reliable, fuel-efficient Kubota
D722 3-cylinder engine delivering smooth hydraulic performance.
- Vibration-Damped Mounting: Engine bay engineered for
lower noise levels and reduced operator fatigue.
- Easy Access Maintenance: Fully opening rear engine hood
provides quick access for daily routine checks.
Request a Quote
Ultra-Compact Dimensions
- Zero Tail Swing: Rear of machine remains within track
width when rotating, eliminating collision risks near walls.
- Variable Track Width: Hydraulically retracts from 990 mm
down to 750 mm to pass through narrow doorways.
- Foldable Blade Extensions: Quick-hinge blade pins adjust
easily to match wide or narrow undercarriage track positions.
Side-Lever Hydraulic Controls
- Ergonomic Side Levers: Pilot-operated joystick controls
located alongside seat for effortless, precise operation.
- Foldable ROPS Frame: Roll-Over Protective Structure folds
down without tools for low-overhead clearance.
- Integrated Anti-Theft: Equipped with Kubota's engine key
immobilizer system for security on site.
Versatile Auxiliary Hydraulics
- Proportional Service Lines: Standard 2-way auxiliary
hydraulic circuit to power hammers, augers, and attachments.
- Protected Hoses: Boom hydraulic lines routed internally
through arm to protect against site impacts.
- Smooth Two-Speed Travel: Pedal-controlled high-speed
travel mode for fast position shifts across sites.
Model Variations & Specifications
| MODEL |
DESCRIPTION & SPECIFICATIONS |
PRODUCT CODE |
| U10-5 ROPS |
Foldable ROPS Arch, Side-Lever Controls, Variable Undercarriage
(750–990 mm), Rubber Tracks |
W20CK01105 |
| U10-5 ROPS High-Flow |
Foldable ROPS Arch, Side-Lever Controls, Auxiliary Line 1 Quick
Coupler, Rubber Tracks |
W20CK01106 |
Technical Specifications - Kubota U10-5 Micro
Excavator
| SPECIFICATION |
DETAILS |
| Operating Weight (ROPS) |
1,045 kg |
| Engine Model |
Kubota D722-E4-BH-5 (Stage V) |
| Engine Output |
10.3 HP / 7.6 kW @ 2,050 rpm |
| Machine Width (Retracted / Extended) |
750 mm / 990 mm |
| Maximum Digging Depth |
1,800 mm |
| Maximum Digging Reach |
3,380 mm |
| Maximum Vertical Digging Depth |
1,550 mm |
| Bucket Breakout Force |
1,060 kgf (10.4 kN) |
| Travel Speed (Low / High) |
2.0 km/h / 4.0 km/h |
| Auxiliary Hydraulic Flow |
21.0 L/min |
| Tail Swing Type |
Zero Tail Swing |
| Anti-Theft System |
Kubota Coded Key Immobilizer System Standard |
