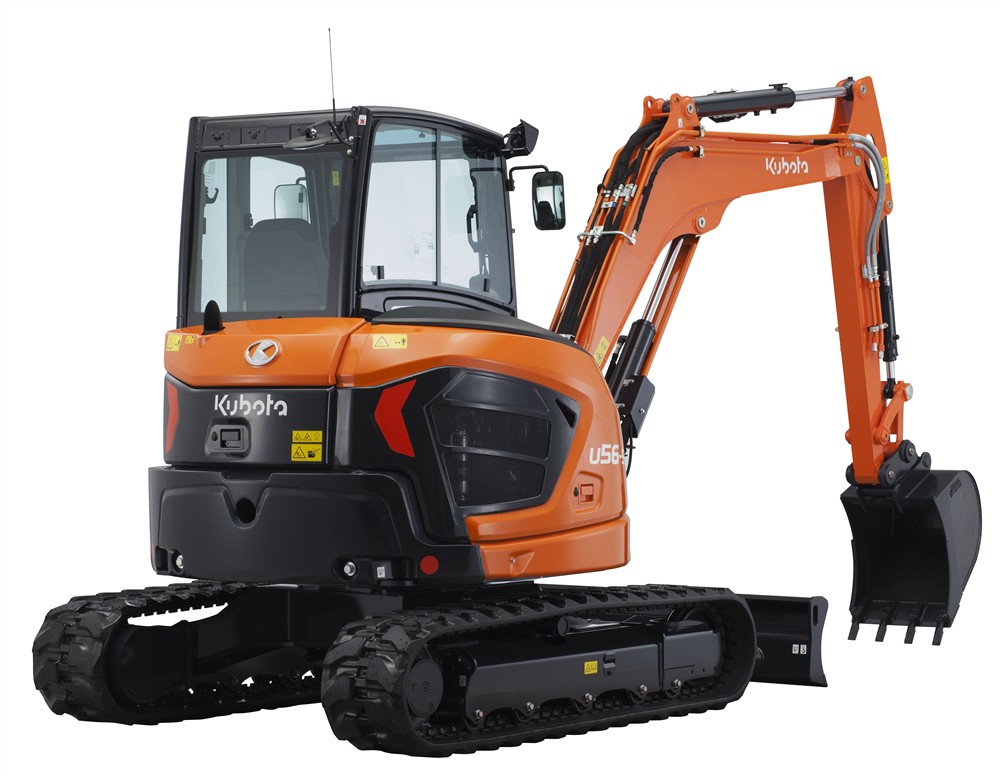

New Kubota U56-5 KWLS2 Air-Conditioned Wide
Steel Track Mini Excavator
Maximum Ground Support, Low Ground Pressure & Dual Aux
Stability. The Kubota U56-5 KWLS2 is specifically engineered for
contractors facing challenging, soft, or sensitive ground conditions where
traction and stability are paramount. Featuring high-flotation **Wide 550mm
Continuous Steel Tracks** on a robust **Fixed Undercarriage**, this specialist
configuration disperses the machine's 5.7-ton weight over a significantly
broader footprint. This dramatically reduces ground pressure and prevents
sinking in soft soils, peat, marshlands, and heavy clay, while maximizing
lifting capacity over the side. Boasting a tight tail swing for safe handling on
tight urban infrastructure projects, it includes a deluxe **Air-Conditioned
Cabin** for peak operator efficiency, a factory-fitted **Amber & Green
Safety Beacon Kit**, an **Extended Long Arm**, and twin proportional **AUX 1
& AUX 2** lines controlled via joystick thumb sliders for total hydraulic
attachment versatility.
550mm Wide Steel Footprint
- Flotation Performance: Extra-wide 550mm steel tracks
reduce ground pressure for wet, marshy, or low-load surfaces.
- Unmatched Lifting Base: Wider track width provides
incredible lateral stability when swinging heavy payloads at full reach.
- Maximum Traction: Aggressive triple-grouser steel shoes
bite deep into loose soil, slippery mud, and steep slopes.
- Severe Duty Longevity: Engineered to withstand jagged
demolition rubble, forestry roots, and abrasive bedrock.
Request a Quote
Commercial Fleet Sales
- Anti-Theft System: Factory-secured with Kubota's
electronic coded-key immobilizer system.
- Gold Standard PDI: Fully prepped, calibrated, and
safety-tested by factory-trained technicians.
- Local Plant Support: Full Isle of Wight back-up for
warranty, fast parts delivery, and specialized field service.
- Asset Finance Options: Flexible business hire-purchase
and finance structures tailored to local plant operators.
Dual Safety Beacons
- Amber Beacon: Ultra-bright LED roof strobe provides high
visibility for site safety compliance.
- Green Belt Beacon: Activates automatically when the
seatbelt is fastened, confirming operator safety to site marshals.
- Tier 1 Compliant: Arrives ready for instant deployment
onto strictly regulated commercial and civil worksites.
- OEM Hardwired: Fully integrated into the excavator's
electrical system to ensure reliability.
Deluxe Cab & Twin AUX
- Climate-Controlled Cabin: Sealed, air-conditioned
workspace keeps dust out and operator comfort at its peak.
- Twin Proportional AUX: Thumb sliders on both joysticks
enable proportional flow control for grabs and tiltrotators.
- Extended Long Arm: Provides a class-leading 6,270 mm
maximum digging reach and 3,890 mm dig depth.
- 7-inch LCD Display: Intuitive control panel makes it easy
to save and adjust hydraulic flow presets for up to 5
attachments.
Technical Specifications - Kubota U56-5 KWLS2
(Air-Con & Wide Steel Tracks)
| SPECIFICATION |
DETAILS |
| Operating Weight |
5,745 kg (Increased ground flotation) |
| Engine Model |
Kubota V2607-CR-E5 (4-Cylinder Stage V with DPF) |
| Engine Output |
35.0 kW / 47.6 PS @ 2200 rpm |
| Tail Swing Type |
Tight Tail Swing |
| Track Configuration |
Ultra-Wide 550 mm Continuous Steel Tracks |
| Undercarriage Type |
Heavy-Duty Fixed Track Frame |
| Arm Configuration |
Extended Long Arm Edition |
| Hydraulic Auxiliaries |
Dual Proportional AUX 1 & AUX 2 Lines on Joysticks |
| Max. Digging Depth |
3,890 mm |
| Max. Digging Reach |
6,270 mm |
| Auxiliary Hydraulic Flow (AUX1) |
85.0 L/min @ 21.0 MPa (210 kgf/cm²) |
| Auxiliary Hydraulic Flow (AUX2) |
45.0 L/min @ 21.0 MPa (210 kgf/cm²) |
| Safety Indicators |
Factory-Installed Dual Beacon Kit (Amber &
Green) |
Authorized Kubota Construction
Equipment Dealer
Stubbings Bros:
Providing elite-level plant support, technical service, and genuine parts across
the Isle of Wight.
