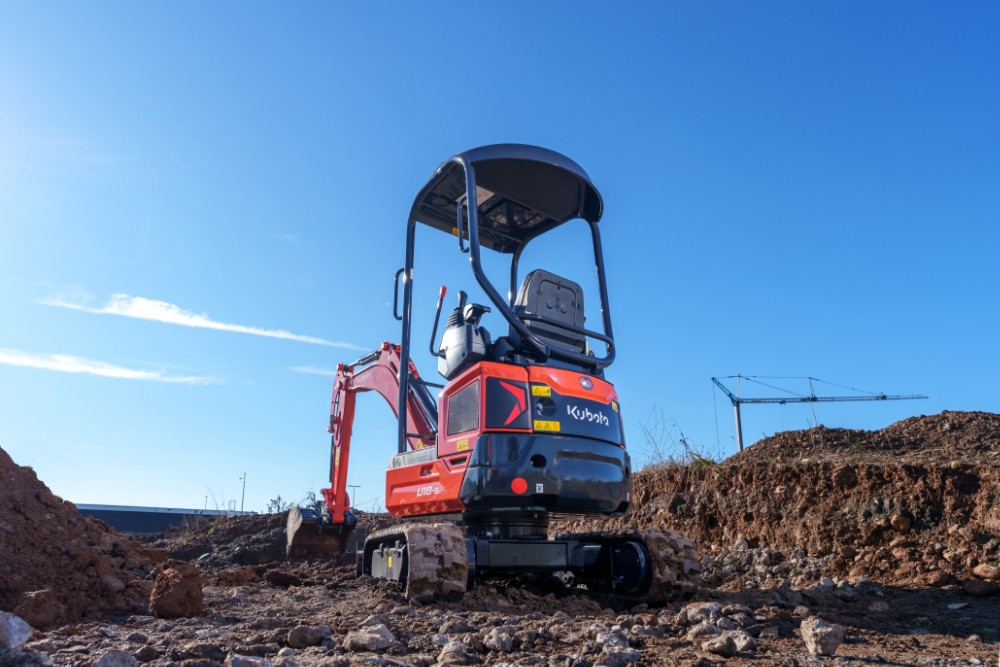

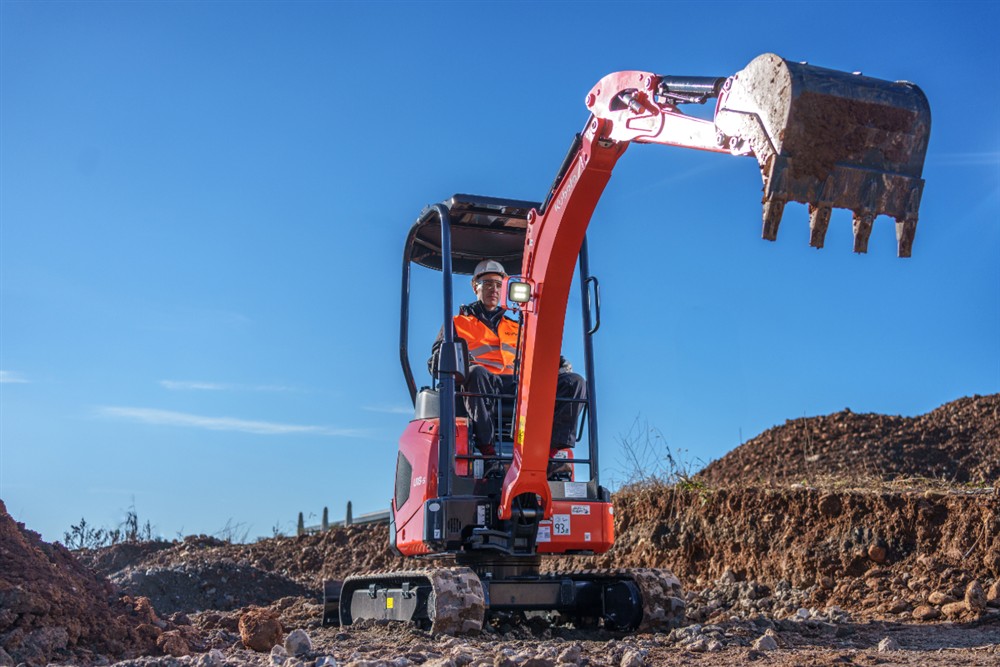

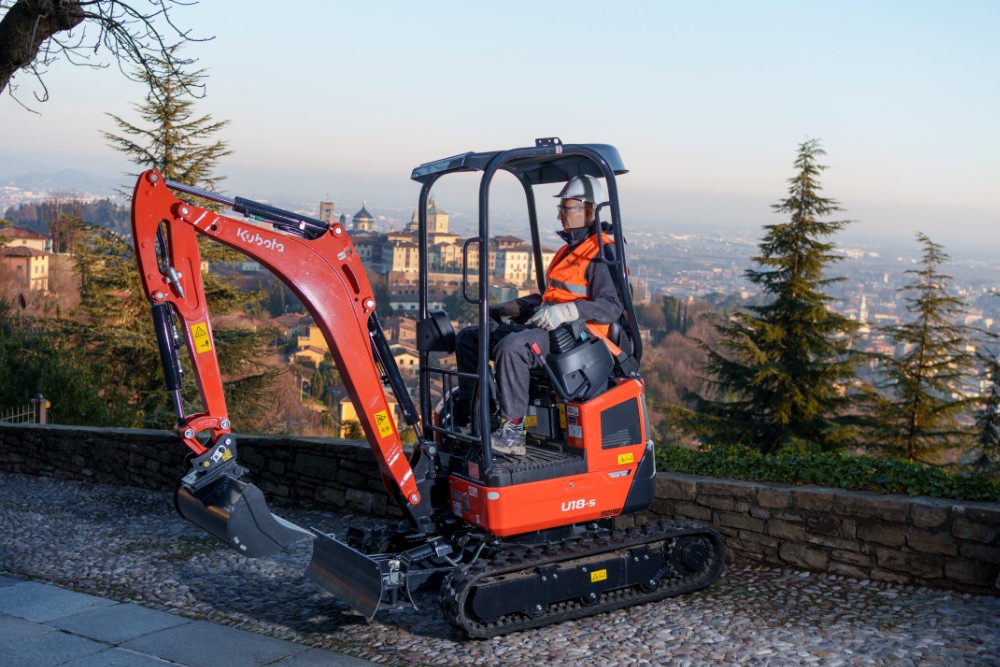

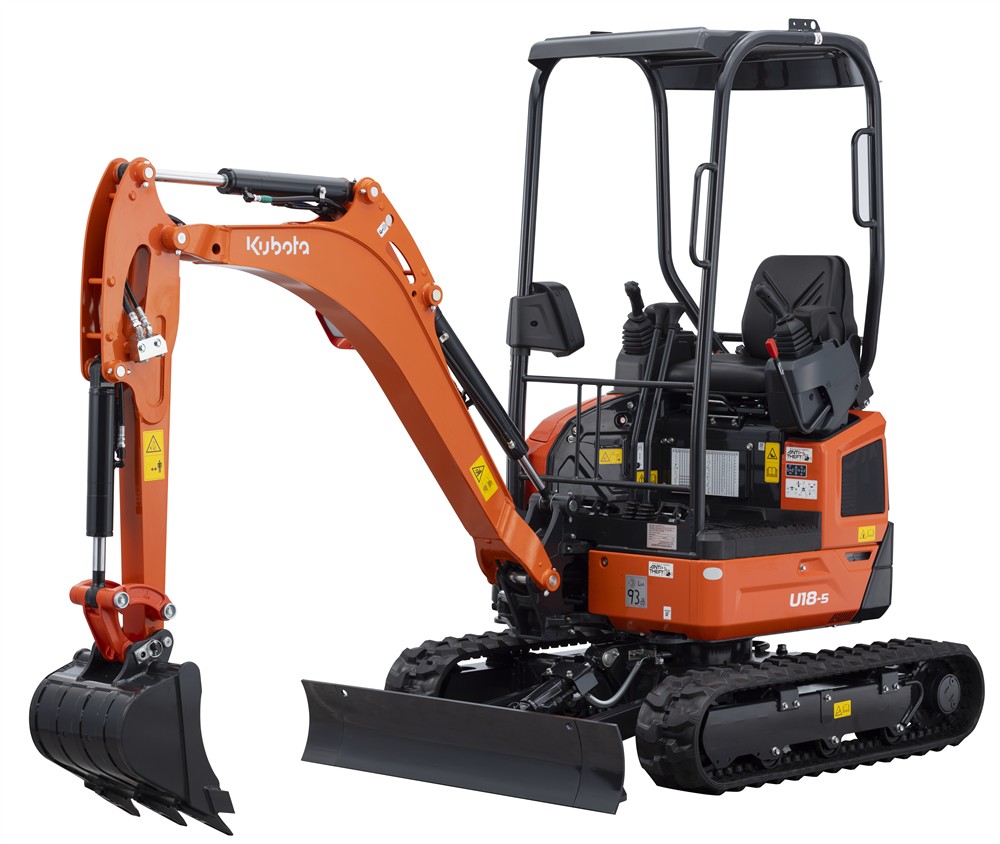

New Kubota U18-3a VHGL F1 Long Arm Mini
Excavator
Extended Working Range, Premium Stability & Conventional
Power. The Kubota 1.8-tonne mini excavator is built to conquer
demanding utilities, commercial civil engineering, and hard landscaping
installations. This specific configuration features a factory-fitted **Extended
Long Arm (L)**, delivering enhanced digging depths and extended loading
clearance without sacrificing lifting performance. Built with a hydraulic
**Variable Track Gauge (VHG)**, the tracks glide seamlessly from a slim 990mm
width for tight site accesses and alleyways, up to a broad 1,300mm footprint for
rock-solid stability. Configured with an open canopy architecture (F1) and
standard single-line auxiliary hydraulic piping, the U18 represents the peak of
performance for operators tracking high-efficiency earthmoving
outputs.
Extended Arm Capabilities
- Long Arm Edition: Provides significant gains in maximum
digging depth and discharge heights.
- Variable Undercarriage: Hydraulically pushes tracks from
990mm out to a robust 1,300mm.
- Enhanced Geometry: Redesigned linkage increases maximum
reach for lower machine relocation downtime.
- Built-In Blade Extensions: Fast fold-out hinge design
ensures blade dimensions mirror track setups instantly.
Request a Quote
Commercial Fleet Sales
- Anti-Theft Master: Fully secured via Kubota's reliable
factory electronic unique-key system.
- Prepped & Ready: Undergoes a strict multi-point
technical PDI check before leaving our yard.
- Island Delivery: Prompt site delivery and comprehensive
professional handover parameters.
- Bespoke Finance: Capital asset business funding
structures are available for commercial accounts.
Hydraulics & Output
- Kubota D902 Engine: Ultra-reliable 3-cylinder diesel
plant meets stringent Stage V guidelines.
- Single-Line Auxiliaries: Plumbed directly to power
high-impact hydraulic breakers or heavy augers.
- Balanced Design: Tailored counterweights guarantee superb
stability even with a fully extended bucket.
- Straight Line Travel: Maintains forward tracking accuracy
during multi-function hydraulic manipulation.
Control & Operator Safety
- F1 ROPS Canopy: Exceptional 360-degree jobsite visibility
for the operator.

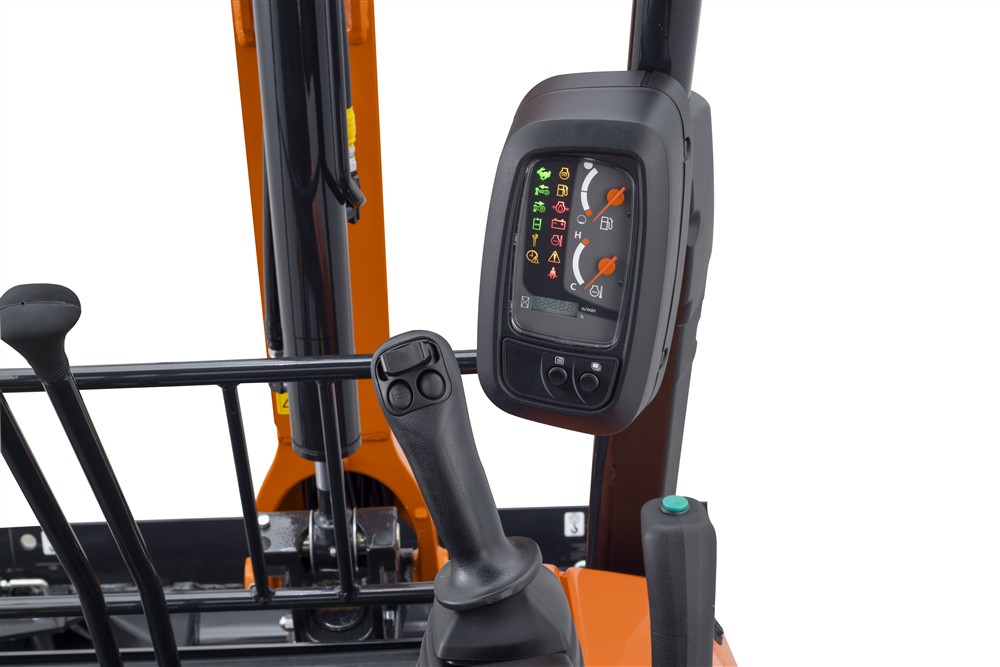

- Ergonomic Joysticks: Responsive pilot levers provide
low-fatigue, ultra-precise adjustments.
- Protected Hoses: Hydraulic lines are hidden completely
inside the arm structure to prevent impact.
- Dealer Support: Backed directly by Stubbings Bros
comprehensive parts and servicing workshops.
Technical Specifications - Kubota U18-3a
VHGL
| SPECIFICATION |
DETAILS |
| Operating Weight |
1,770 kg |
| Engine Model |
Kubota D902 (Stage V European Compliant) |
| Engine Output |
11.8 kW / 16.0 HP @ 2300 rpm |
| Arm Configuration |
Factory Long Arm Edition (L) |
| Track Extension System |
Hydraulic Adjustment (990 mm to 1,300 mm) |
| Max. Digging Depth |
2,560 mm |
| Max. Digging Reach |
4,070 mm |
| Hydraulic Auxiliary Line |
Single-Line Feed (27.7 L/min) |
| Model Code |
Configuration / Specification |
Product Code |
| U18-5 VHGL F1 |
Canopy, Rubber Tracks, Foot Auxiliary, Variable Undercarriage, Long Arm |
RA26450580 |
| U18-5 VHGL S1 |
Canopy, Rubber Tracks, Hand Auxiliary 1, Variable Undercarriage, Long Arm |
RA26460580 |
| U18-5 VHGL S2 |
Canopy, Rubber Tracks, Hand Auxiliary 1&2, Variable Undercarriage, Long Arm |
RA26470580 |
